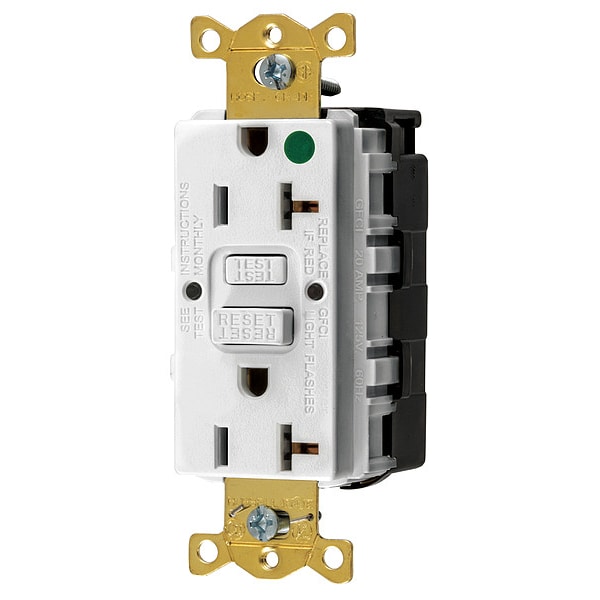

Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Wht, 20A, 1 HP SNAPGF83W - main

GFCI Rceptcle, Hspital, Wht, 20A, 1 HP

  • Mfr # SNAPGF83W

  • Zoro # G4885161

product price: $66.99
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAPGF83W
Zoro #
G4885161
UPC #
783585486246
Country of Origin
China

Dimensions

Overall Depth
1.5 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Face Plate Width
1.8 in
Face Plate Height
2.8 in
Dimensions
3.28 in x 1.77 in x 1.47 in
Height
1.47 in
Wire Size
#12 AWG
Width
1.77 in
Length
3.28 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Material
Nylon
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Amps - Plugs and Receptacles
20
Wiring Method - Plugs and Receptacles
Modular
Voltage - Plugs and Receptacles
125V AC
Application Environment
Heavy Use Hospital Grade
Outlet Type
Decorator
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Amps
20A
Self-Testing
Yes
Special Features
Ground Fault Indicator
Weather Resistant
No
Color
White
Surge Suppression
No
Item - Plugs and Receptacles
Receptacle
HP
1 hp
Voltage
125VAC
Wiring Method
Back
Amps - Plugs and Receptacles
20 A
Power Indicator
Yes
NEMA Configuration
5-20
Outlet Type - Plugs and Receptacles
Decorator Duplex
Mounting Type - Plugs and Receptacles
Flush
Color - Plugs and Receptacles
White
Reset Type
Automatic
Tamper Resistant
No
Grade
Hospital Grade Fed. Spec.
Flange Type
Non-Flanged
Voltage Rating
125V AC
Surge Protection
No
Self Testing
Yes
Receptacle Type
Decorator Duplex
Mount Type
Flush
Contact Material
Brass
Number of Gangs
1
Shrouded
No
Market
Commercial
Horsepower Rating
1 hp
Features
SnapConnect
Includes Mounting Hardware
Yes
AFCI
No
Wire Connection Type
Modular Wiring
Hub Type
Feed Through
Includes
Mounting Hardware, Wall Plate
Type
Standard
Voltage Rating Description
125 V
Series
Hospital Grade
Industry Standard(s)
Meets All NEC® Requirements
Horsepower - Maximum
0.5
Wattage
1875 W
Nema Rating
5-15R
Style
Standard
Item Type
Self test GFCI receptacle
Current / Amperage Rating
15 A
Amperage Rating
15 A
Application
Commercial Hospital Grade

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 15 years ago...self test monitoring now required in UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, a clear visual indicator is provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Audible SNAP indicates solid connection
• Patented AUTOGUARD® self test technology
• Triple wipe construction
• Triple wipe construction
• Protects against line and load reversal, no power to the face or downstream if device is miswired
