Shop MOLEX

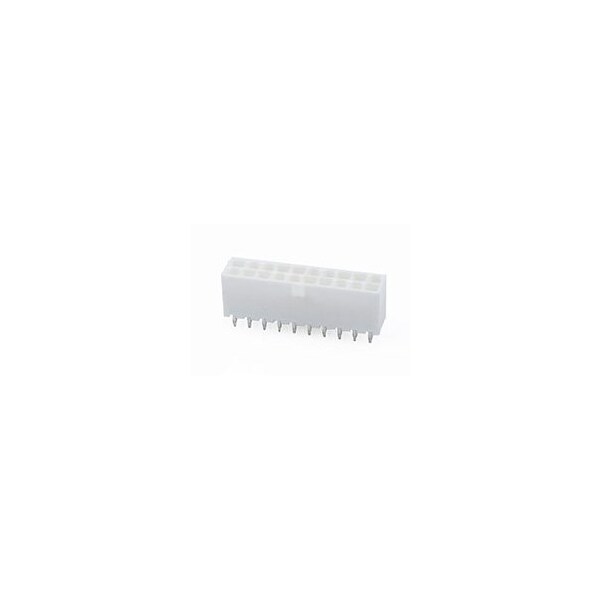

New Mini Fit Conn Header Assy 20Ckt

  • Mfr # 39-29-6208

  • Zoro # G7769873

product price:  $9.69
/ea
Sold in multiples of 10 for $96.90

Key Features

Flammability
94V-0
Pitch - Termination Interface
4.20mm
UL
E29179
PCB Thickness - Recommended
1.60mm
Circuits (Loaded)
20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-29-6208
Zoro #
G7769873
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Flammability
94V-0
Pitch - Termination Interface
4.20mm
UL
E29179
Circuits (Loaded)
20
Termination Interface: Style
Through Hole
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
Lock to Mating Part
Yes
Durability (mating cycles max)
30
Material - Resin
Nylon
Voltage - Maximum
600V
PCB Locator
Yes
Material - Metal
Brass
Material - Plating Termination
Matte Tin
Number of Rows
2
Color - Resin
Natural
Duration at Max. Process Temperature (seconds)
5
Polarized to Mating Part
Yes
Circuits (maximum)
20
Process Temperature max. C
260
Current - Maximum per Contact
9.0A
Plating min - Termination
2.540µm
CSA
LR19980
Polarized to PCB
Yes
Material - Plating Mating
Gold
Max. Cycles at Max. Process Temperature
1
Orientation
Vertical
Plating min - Mating
0.762µm
Pitch - Mating Interface
4.20mm
