  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Black

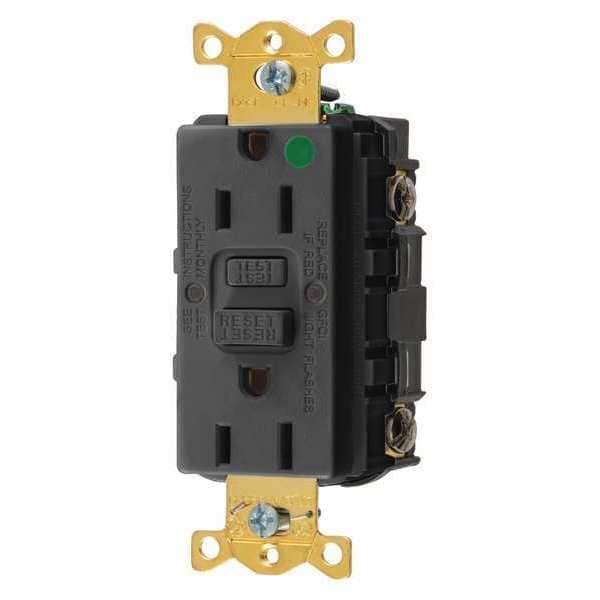

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Black GFR82BLK - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Black

  • Mfr # GFR82BLK

  • Zoro # G0087967

product price: $65.41
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR82BLK
Zoro #
G0087967
UPC #
783585485119
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Black
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Outlet Type
Decorator
Weather Resistant
No
Item - Plugs and Receptacles
Receptacle
Surge Suppression
No
Amps
15A
Voltage
125VAC
Color
Black
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method
Back, Side
NEMA Configuration
5-15
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
Yes
Amps - Plugs and Receptacles
15 A
Special Features
Ground Fault Indicator
Voltage - Plugs and Receptacles
125V AC
HP
0.5 hp
Self-Testing
Yes
Reset Type
Automatic
Color - Plugs and Receptacles
Black
Application Environment
Heavy Use Hospital Grade
Mount Type
Flush
Wire Connection Type
Screw Terminals
Shrouded
No
Receptacle Type
Duplex
Includes Mounting Hardware
Yes
Voltage Rating
125V AC
Self Testing
Yes
Flange Type
Non-Flanged
Contact Material
Brass
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Market
Commercial
Grade
Hospital Grade
Includes
Mounting Hardware
AFCI
No
Number of Gangs
1
Horsepower Rating
1/2 hp
Surge Protection
No
Type
Standard
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
15 A
Series
Hospital Grade
Voltage Rating Description
125 V
Nema Rating
5-15R
Style
Standard

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1/2 hp
