Shop HUBBELL WIRING DEVICE-KELLEMS

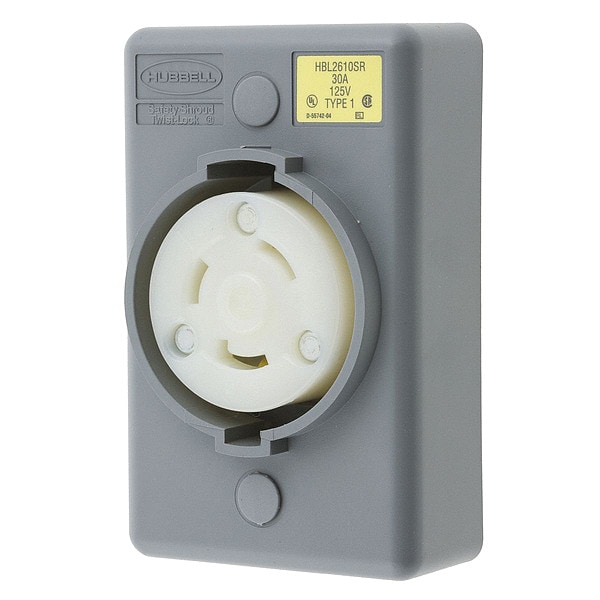

Locking Receptacle, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals

  • Mfr # HBL2610SR

  • Zoro # G0512416

product price:  $53.15
/ea

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2610SR
Zoro #
G0512416
UPC #
783585234267
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#10 AWG

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
IP Rating
IP20
Grade
Industrial
Special Features
Corrosion resistant
Mounting Type
Surface Mount
Wiring Style
Standard
Material
Impact Modified PBT
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Housing Material
Valox
Connection Orientation
Straight
For Location
Indoor
AFCI
No
Shrouded
Yes
Contact Material
Brass
Horsepower Rating
2 hp
Number of Gangs
1
NEMA Enclosure Rating
12, 4X
For Environment
Dry
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Spring Material
.031" Brass
Flammability
VO or better
Amps
30
UL 94 Flammability Rating
V-2

Description

The HUBBELL 30A Twist-Lock Receptacle L5-30R is a locking receptacle designed to provide locking electrical connections in indoor, dry locations. It features a twist-lock mechanism with alignment arrows and lock/unlock symbols for visual indicators for alignment and lock/unlock status. The device supports 2-pole, 3-wire configurations at 125V AC and is rated for up to 30 amps.


Key Features of the HUBBELL 30A Twist-Lock Receptacle L5-30R:

  • NEMA Configuration: L5-30R; single phase, grounded

  • Current/Voltage Rating: Rated for 30 A at 125V AC

  • Material Construction: Engineered thermoplastic (Valox) housing and flange; impact modified PBT body; constructed with materials specified as corrosion- and impact-resistant by the manufacturer

  • Connection Orientation: Straight with screw terminal wire connections

  • Wire Size Compatibility: Accepts wire sizes from #16 AWG to #8 AWG (#10 AWG standard)

  • Mounting Type: Surface mount design; non-flanged

  • Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)

  • Horsepower Rating: Rated for use with equipment drawing up to 2 horsepower, per manufacturer specifications

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed

  • Coding & Identification: Catalog number and color-coded voltage rating visible during use; terminals identified per UL498 (X, Y, Z, White, Green)
