  11. GFCI Receptacle, 15A, 125VAC, 5-15R, White

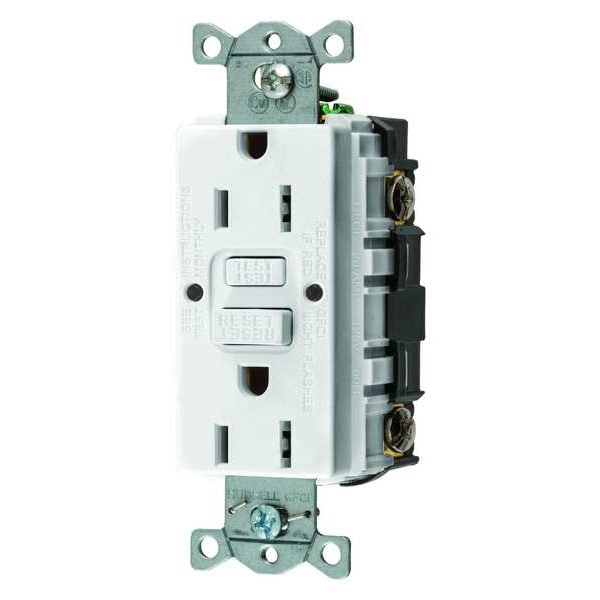

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, White GFR15W - main

GFCI Receptacle, 15A, 125VAC, 5-15R, White

  • Mfr # GFR15W

  • Zoro # G0088098

product price: $24.91
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR15W
Zoro #
G0088098
UPC #
883778122071
Country of Origin
China

Dimensions

Overall Depth
1.5 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Outlet Type
Decorator
Wiring Method
Back, Side
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
15
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Configuration
5-15
Reset Type
Automatic
Color
White
Tamper Resistant
No
Amps - Plugs and Receptacles
15 A
Item - Plugs and Receptacles
Receptacle
Voltage - Plugs and Receptacles
125V AC
Application Environment
Industrial
Voltage
125VAC
HP
0.5 hp
Amps
15A
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Color - Plugs and Receptacles
White
Surge Suppression
No
Self-Testing
Yes
Flange Type
Non-Flanged
Mount Type
Flush
Horsepower Rating
1/2 hp
Grade
General Use
Market
Industrial
Includes Mounting Hardware
Yes
Contact Material
Brass
Surge Protection
No
Receptacle Type
Duplex
AFCI
No
Includes
Mounting Hardware
Number of Gangs
1
Voltage Rating
125V AC
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Self Testing
Yes
Wire Connection Type
Screw Terminals
Shrouded
No
Type
Standard
Industry Standard(s)
Meets All NEC® Requirements
Style
Standard
Voltage Rating Description
125 V
Nema Rating
5-15R
Series
Heavy Duty
Amperage Rating
15 A
Current / Amperage Rating
15 A

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1/2 hp
