  11. GFCI Receptacle, 15A, 125VAC, 5-15R, White

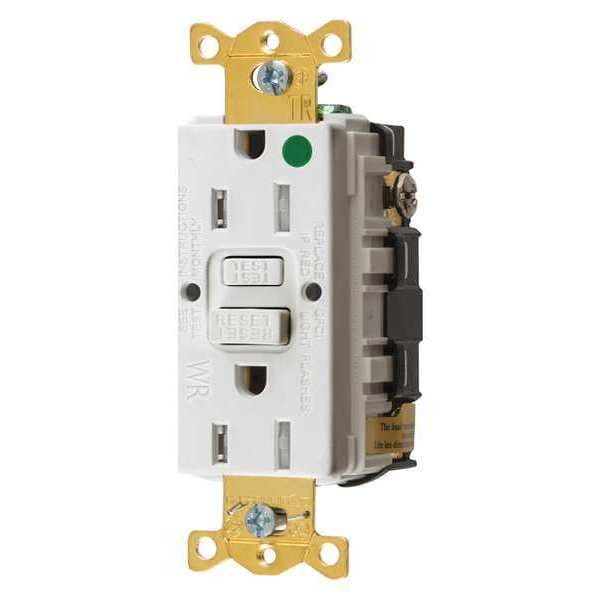

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, White GFRTW82W - main

GFCI Receptacle, 15A, 125VAC, 5-15R, White

  • Mfr # GFRTW82W

  • Zoro # G0087775

product price: $69.80
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTW82W
Zoro #
G0087775
UPC #
783585485331
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Reset Type
Automatic
Wiring Method - Plugs and Receptacles
Back and Side
Color - Plugs and Receptacles
White
Outlet Type
Decorator
Power Indicator
No
Self-Testing
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Configuration
5-15
Item - Plugs and Receptacles
Receptacle
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Amps
15A
Amps - Plugs and Receptacles
15 A
Tamper Resistant
Yes
Weather Resistant
Yes
Voltage - Plugs and Receptacles
125V AC
Weather Resistant - Plugs and Receptacles
Yes
Voltage
125VAC
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Color
White
Wiring Method
Back, Side
Surge Suppression
No
Horsepower Rating
1 hp
Grade
Hospital Grade
AFCI
No
Includes Mounting Hardware
Yes
Shrouded
No
Self Testing
Yes
Contact Material
Brass
Receptacle Type
Duplex
Surge Protection
No
Resistance Properties
Tamper Resistant, Weather Resistant
Mount Type
Flush
Number of Gangs
1
Market
Commercial
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Flange Type
Non-Flanged
Includes
Mounting Hardware
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof
Type
Tamper-Resistant, Weather Resistant
Voltage Rating Description
125 V
Style
Standard
Current / Amperage Rating
15 A
Nema Rating
5-15R
Industry Standard(s)
Meets All NEC® Requirements
Series
Hospital Grade

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
