  11. GFCI Receptacle, 15A, 125VAC, 5-15R, White

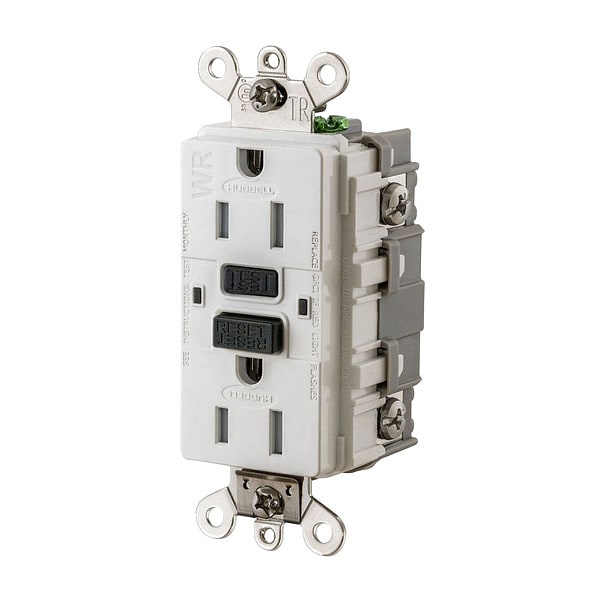

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, White GFSG5262W - main

GFCI Receptacle, 15A, 125VAC, 5-15R, White

  • Mfr # GFSG5262W

  • Zoro # G5170487

product price: $152.99
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFSG5262W
Zoro #
G5170487
UPC #
783585440910
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Overall Depth
1.5 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA Certified, UL Listed
Outlet Type
Decorator
Application Environment
Industrial
Item - Plugs and Receptacles
Receptacle
Color
White
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage - Plugs and Receptacles
125V AC
Power Indicator
Yes
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Amps
15A
Color - Plugs and Receptacles
White
Wiring Method - Plugs and Receptacles
Back and Side
Amps - Plugs and Receptacles
15 A
Special Features
Includes (1) White Nylon Wall Plate and (1) Stainless Steel Wall Plate
Wiring Method
Back, Side
HP
0.5 hp
Reset Type
Automatic
Amps - Plugs and Receptacles
15
NEMA Configuration
5-15
Weather Resistant - Plugs and Receptacles
Yes
Self-Testing
Yes
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
Yes
Weather Resistant
Yes
Surge Protection
No
Grade
Federal Specification
Hub Type
Feed Through
Wire Connection Type
Screw Terminals
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-31 Degrees F
Features
Self Test
Flange Type
Non-Flanged
Self Testing
Yes
Mount Type
Flush
Voltage Rating
125V AC
Number of Wall Plates Included
1
Wall Plate Material
Stainless Steel
Maximum Operating Temperature
150.8 Degrees F
AFCI
No
Market
Industrial
Shrouded
No
Contact Material
Nickel-Plated Brass
Number of Gangs
1
Includes
(1) Matching Nylon, (1) Stainless Wall Plate, Mounting Hardware
Receptacle Type
Duplex
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Includes Mounting Hardware
Yes
Receptacle Grade
Industrial Grade
Max Humidity
0.95
Voltage Range
120V AC +10% -15%
Receptacle Version
Self Test Tamper Resistant
Frequency
60Hz
Amperage Range
15A/20A, 20 Amps Feed Thru
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Codes and Standards
Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
Terminal Accommodations
#14 -10 AWG stranded or solid copper conductors only.
Trip Time
0.025 seconds
Trip Level
4-6 mA
Max Interrupting Capacity
10,000 Amps
GFCI Product Type
receptacles
Amperage
15A

Description

The HUBBELL GFCI Receptacle is a duplex, ground fault circuit interrupter rated for use in industrial environments. Rated at 15A and 125VAC with a NEMA 5-15R configuration, it features AUTOGUARD® technology with periodic monitoring of protection capability (every 30 seconds). The receptacle disconnects power when GFCI protection is not detected or when certain internal conditions occur. Visual indicators on the device provide visual indicators for power availability, trip condition, ground fault presence, and end-of-life notification.


Key Features of the HUBBELL GFCI Receptacle:

  • Amperage/Voltage: Rated for 15A and 125VAC operation

  • Self-Test Function: Performs periodic self-tests of GFCI functionality at approximately 30-second intervals

  • Tamper resistant; weather resistant construction allows installation in specified damp locations per manufacturer’s guidelines

  • Trip Level/Time: Trips at 4-6 mA within 0.025 seconds

  • Visual Indicators: Provides visual indicators for power availability, trip condition, ground fault presence, and end-of-life notification

  • Wiring Options: Accepts #14–10 AWG copper conductors; supports back and side wiring methods via screw terminals

  • NEMA Configuration: Duplex decorator style with NEMA 5-15R outlets; flush mount installation

  • Includes Accessories: Supplied with one white nylon wall plate, one stainless steel wall plate, and mounting hardware

  • Certain Standards Met: Meets UL 943 Class A GFCIs & UL 498; CSA certified; complies with NEC, CEC & OSHA requirements (UL File E-41978)
