  11. Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded

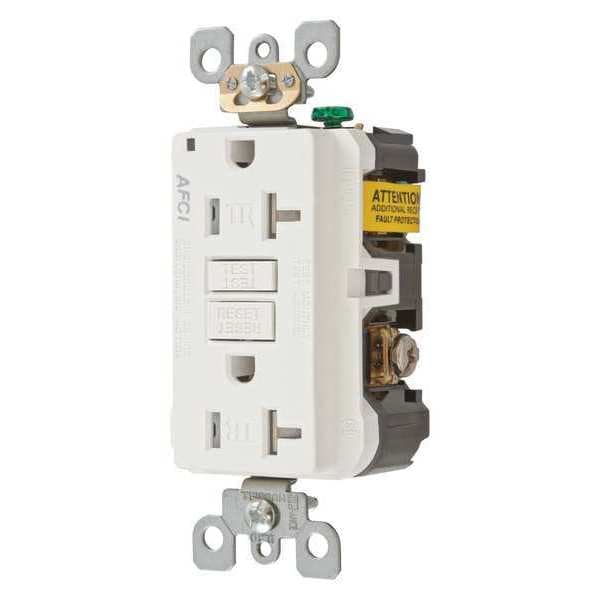

Hubbell Wiring Device-Kellems Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded AFR20TRW - main

Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded

  • Mfr # AFR20TRW

  • Zoro # G4440305

product price: $68.24
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
No
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFR20TRW
Zoro #
G4440305
UPC #
783585426167
Country of Origin
China

Dimensions

Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.8 in
Overall Depth
1.4 in
Face Plate Width
1.7 in

Details

Item
Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
No
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA Certified C22.2 No. 42, CSA Certified Tech Letter No. M-02A, NEMA WD-6, UL 498, UL Federal Specification WC-596, UL1699A E366570
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Amps - Plugs and Receptacles
20 A
Corrosion Resistant
No
Outlet Type
Duplex
Sub-Category
Duplex Receptacles
Color - Plugs and Receptacles
White
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Rating
1
Power Indicator
No
Voltage
125VAC
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Phase
Single
Amps - Plugs and Receptacles
20
Tamper Resistant
Yes
Application Environment
Commercial
HP
1 hp
Item - Plugs and Receptacles
Arc Fault Receptacle
Mounting Type - Plugs and Receptacles
Flush
Description
Finder Groove
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon
Color
White
IP Rating
IP20
Voltage - Plugs and Receptacles
125V AC
Amps
20
Wiring Method
Back, Side
Weather Resistant
No
Grade
General Use
Minimum Operating Temperature
-30 Degrees F
Flange Type
Non-Flanged
AFCI
Yes
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
150 Degrees F
Market
Commercial
Mount Type
Flush
Shrouded
No
Voltage Rating
125V AC
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Surge Protection
No
Self Testing
Yes
Resistance Properties
Tamper Resistant
Receptacle Type
Duplex

Description

The HUBBELL 5-20R Duplex Receptacle is a flush mount, tamper-resistant electrical outlet rated for 20 amps and 125V AC. Suitable for use in commercial environments, this standard duplex receptacle includes arc fault circuit interrupter (AFCI) technology that disconnects power when an arc is detected. The unit supports both back and side wiring methods with screw terminals and includes a nylon housing.


Key Features of the HUBBELL 5-20R Duplex Receptacle:

  • AFCI: Integrated Arc Fault Circuit Interrupter designed to disconnect power upon detection of electrical arcs.

  • Amperage/Voltage: Rated for 20 A and 125V AC operation.

  • Mounting Type: Flush mount design suitable for single-gang installations.

  • NEMA Configuration: Standard NEMA 5-20R configuration with polarized, grounded connections.

  • Tamper Resistant: Built-in tamper resistance feature

  • Material: Nylon construction

  • Wiring Method: Accepts both back and side wiring via screw terminals.

  • Operating Temperature Range: Suitable for use from -30°F to 150°F (-34°C to 66°C).

  • Standards Compliance: Meets UL498, UL1699A E366570, CSA C22.2 No.42, NEMA WD-6 requirements.
