  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Black

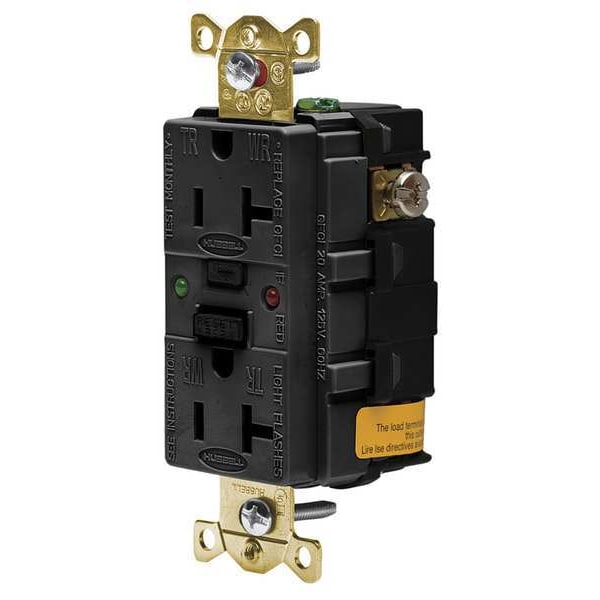

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Black GFSG5362BLK - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Black

  • Mfr # GFSG5362BLK

  • Zoro # G5170496

product price: $127.99
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFSG5362BLK
Zoro #
G5170496
UPC #
783585441153
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Black
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI 73, CSA Certified, FULus, NEC and CEC Certified, NEMA WD-6, UL Listed
Surge Suppression
No
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
Yes
Power Indicator
Yes
Color
Black
NEMA Configuration
5-20
Amps
20A
Weather Resistant
Yes
Color - Plugs and Receptacles
Black
Voltage
125VAC
Voltage - Plugs and Receptacles
125V AC
Wiring Method
Back, Side
Amps - Plugs and Receptacles
20
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Reset Type
Automatic
Outlet Type - Plugs and Receptacles
Decorator Duplex
Item - Plugs and Receptacles
Receptacle
HP
1 hp
Application Environment
Industrial
Amps - Plugs and Receptacles
20 A
Special Features
Includes (1) Black Nylon Wall Plate and (1) Stainless Steel Wall Plate
Mounting Type - Plugs and Receptacles
Flush
Self-Testing
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Decorator
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
AFCI
No
Mount Type
Flush
Surge Protection
No
Hub Type
Feed Through
Minimum Operating Temperature
-31 Degrees F
Includes Mounting Hardware
Yes
Flange Type
Non-Flanged
Shrouded
No
Self Testing
Yes
Market
Industrial
Includes
(1) Matching Nylon, (1) Stainless Wall Plate, Mounting Hardware
UL 94 Flammability Rating
V-0
Wire Connection Type
Screw Terminals
Number of Wall Plates Included
1
Number of Gangs
1
Receptacle Type
Duplex
Maximum Operating Temperature
150.8 Degrees F
Horsepower Rating
1 hp
Wall Plate Material
Stainless Steel
Contact Material
Nickel-Plated Brass
Features
Self Test
Voltage Rating
125V AC
Grade
Federal Specification
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Terminal Accommodations
#14 -10 AWG stranded or solid copper conductors only.
Voltage Range
120V AC +10% -15%
Frequency
60Hz
Trip Time
0.025 seconds
Amperage
20A
Max Humidity
0.95
GFCI Product Type
receptacles
Max Interrupting Capacity
10,000 Amps
Trip Level
4-6 mA
Amperage Range
15A/20A, 20 Amps Feed Thru
Receptacle Version
Self Test Tamper Resistant
Receptacle Grade
Industrial Grade
Codes and Standards
Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 15 years ago...self test monitoring now required in UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, a clear visual indicator is provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Heavy duty robust construction, high impact resistant polyester housing
• Corrosion Resistant: nickel-plated face contacts, mounting strap, line/load terminals and terminal clamps, stainless steel screws
• Patented auto monitor, power denial technology
