  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

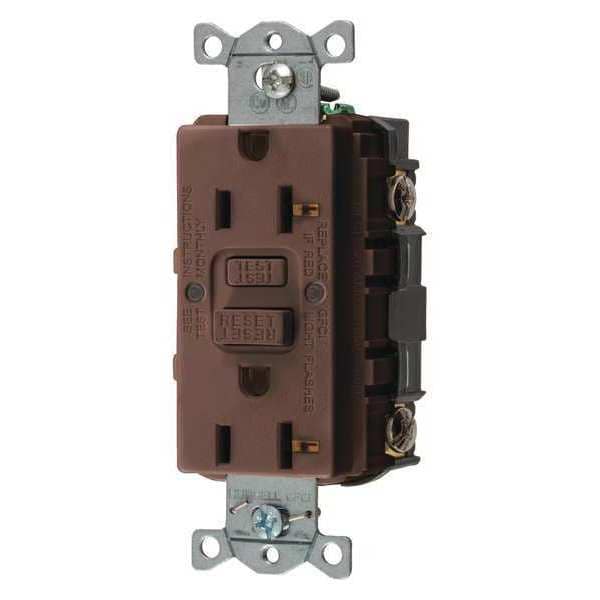

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Brown GFR20 - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

  • Mfr # GFR20

  • Zoro # G0088055

product price: $26.66
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR20
Zoro #
G0088055
UPC #
883778122125
Country of Origin
China

Dimensions

Overall Depth
1.5 in
Face Plate Height
2.8 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Amps - Plugs and Receptacles
20 A
Amps - Plugs and Receptacles
20
Power Indicator
Yes
Color
Brown
Voltage - Plugs and Receptacles
125V AC
HP
1 hp
Outlet Type - Plugs and Receptacles
Decorator Duplex
Color - Plugs and Receptacles
Brown
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Decorator
Reset Type
Automatic
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Application Environment
Industrial
Item - Plugs and Receptacles
Receptacle
Self-Testing
Yes
Amps
20A
Tamper Resistant
No
Wiring Method
Back, Side
NEMA Configuration
5-20
Weather Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Includes Mounting Hardware
Yes
Receptacle Type
Duplex
Wire Connection Type
Screw Terminals
Contact Material
Brass
Surge Protection
No
AFCI
No
Mount Type
Flush
Flange Type
Non-Flanged
Market
Commercial, Industrial
Includes
Mounting Hardware
Horsepower Rating
1 hp
Number of Gangs
1
Voltage Rating
125V AC
Shrouded
No
Grade
General Use
Self Testing
Yes
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Type
Standard
Style
Standard
Nema Rating
5-20R
Amperage Rating
20 A
Industry Standard(s)
Meets All NEC® Requirements
Series
Heavy Duty
Current / Amperage Rating
20 A
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1 hp
