  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

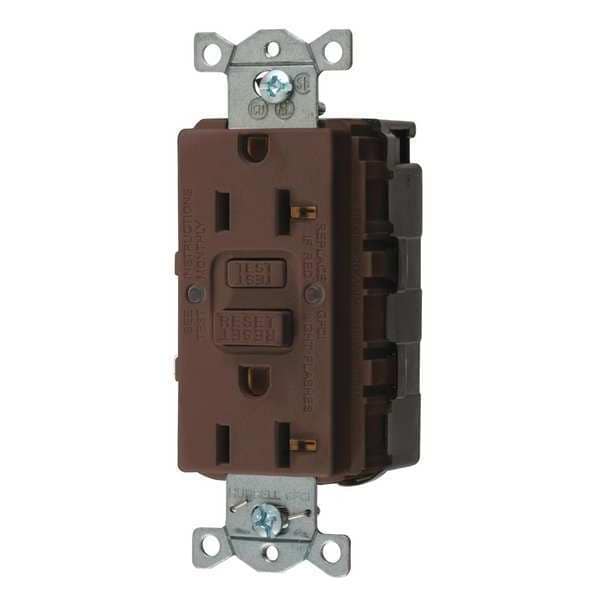

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Brown SNAPGF20 - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

  • Mfr # SNAPGF20

  • Zoro # G4894438

product price: $35.25
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAPGF20
Zoro #
G4894438
UPC #
883778124549
Country of Origin
China

Dimensions

Overall Depth
1.5 in
Face Plate Height
2.8 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Wire Size
#12 AWG
Length
3.28 in
Height
1.47 in
Dimensions
3.28 in x 1.77 in x 1.47 in
Width
1.77 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Brown
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Material
Nylon
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Color - Plugs and Receptacles
Brown
Outlet Type
Decorator
Tamper Resistant
No
Amps - Plugs and Receptacles
20
Application Environment
Industrial
Color
Brown
Weather Resistant
No
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Reset Type
Automatic
Voltage
125VAC
NEMA Configuration
5-20
Amps - Plugs and Receptacles
20 A
HP
1 hp
Self-Testing
Yes
Wiring Method - Plugs and Receptacles
Modular
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
Receptacle
Mounting Type - Plugs and Receptacles
Flush
Voltage - Plugs and Receptacles
125V AC
Power Indicator
No
Wiring Method
Back
Amps
20A
Flange Type
Non-Flanged
Number of Gangs
1
AFCI
No
Voltage Rating
125V AC
Includes
Mounting Hardware, Wall Plate
Grade
Federal Specification
Includes Mounting Hardware
Yes
Contact Material
Brass
Horsepower Rating
1 hp
Wire Connection Type
Modular Wiring
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Shrouded
No
Surge Protection
No
Market
Commercial, Industrial
Mount Type
Flush
Receptacle Type
Decorator Duplex
Self Testing
Yes
Type
Standard
Industry Standard(s)
Meets All NEC® Requirements
Wattage
1875 W
Voltage Rating Description
125 V
Nema Rating
5-20R
Application
Commercial Grade
Horsepower - Maximum
1
Style
Standard
Current / Amperage Rating
20 A
Item Type
Style Line GFCI Receptacle
Series
Heavy Duty
Amperage Rating
20 A

Description

• Audible SNAP, indicates solid connection
• Patented AUTOGUARD® self test technology
• Triple wipe construction
• Patented AUTOGUARD® Self-Test technology
• Protects against line and load reversal, no power to the face or downstream if device is miswired
