Shop HUBBELL WIRING DEVICE-KELLEMS

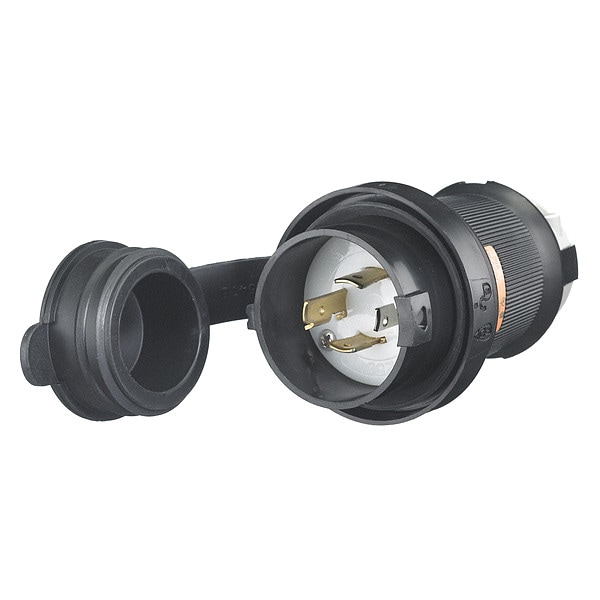

Watertight Locking Plug, L14-20P, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

  • Mfr # HBL2411SW

  • Zoro # G0400827

product price:
$
103.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
L14-20P
Phase
Single
Number of Poles
3
Number of Wires
4
Number of Blades
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2411SW
Zoro #
G0400827
UPC #
783585231280
Country of Origin
United States
Item
Watertight Locking Plug
NEMA Plug Configuration
L14-20P
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black, White
Standards
CSA Certified Type 4, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant, Watertight
Grade
Industrial
IP Rating
IP66
Special Features
Moisture, Dust and Weather Resistant
Material
Impact Modified PBT
Horsepower Rating
2 hp
Polarized
Yes
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
Housing Material
Polybutylene Terephthalate
Screw Material
Stainless Steel
Dielectric Strength
2000V
Flammability
UL 94 V0
Retainer Material
Clear Polycarbonate
Weight
0.7 lb
Contact Material
Brass
Amps
20
Antimicrobial
No
UL 94 Flammability Rating
V-0

Description

Watertight Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Polybutylene Terephthalate, NEMA Plug Configuration L14-20P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 2.77 in, For Maximum Cable Diameter 1.15 in
