  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Gray

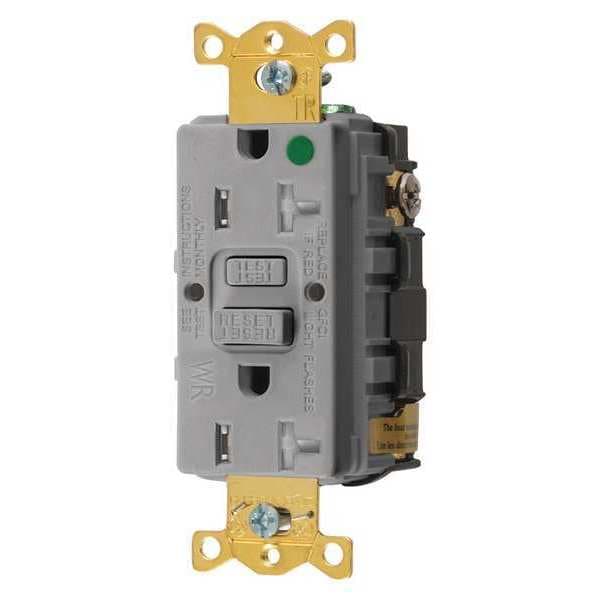

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Gray GFRTW83GRY - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Gray

  • Mfr # GFRTW83GRY

  • Zoro # G0087748

product price: $72.90
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTW83GRY
Zoro #
G0087748
UPC #
783585485362
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Gray
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Weather Resistant - Plugs and Receptacles
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Outlet Type
Decorator
Amps
20A
Outlet Type - Plugs and Receptacles
Decorator Duplex
Tamper Resistant
Yes
Color
Gray
Color - Plugs and Receptacles
Gray
Voltage
125VAC
Amps - Plugs and Receptacles
20 A
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Power Indicator
No
Weather Resistant
Yes
Reset Type
Automatic
Self-Testing
Yes
Voltage - Plugs and Receptacles
125V AC
Wiring Method
Back, Side
NEMA Configuration
5-20
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Heavy Use Hospital Grade
Item - Plugs and Receptacles
Receptacle
AFCI
No
Self Testing
Yes
Market
Commercial
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Shrouded
No
Voltage Rating
125V AC
Contact Material
Brass
Mount Type
Flush
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof
Includes
Mounting Hardware
Grade
Hospital Grade
Receptacle Type
Duplex
Surge Protection
No
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Wire Connection Type
Screw Terminals
Type
Tamper-Resistant, Weather Resistant
Series
Hospital Grade
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
20 A
Voltage Rating Description
125 V
Style
Standard
Nema Rating
5-20R

Description

The HUBBELL GFCI Receptacle is a 20A, 125VAC duplex outlet suitable for use in commercial and medical settings. It features AUTOGUARD® self-test technology performs periodic monitoring of ground fault protection capability.


Key Features of the HUBBELL GFCI Receptacle:

  • Current/Voltage Rating: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20R decorator duplex outlet

  • Self-Testing: Performs periodic self-testing with automatic reset type

  • Tamper Resistant & Weather Resistant: Tamper resistant; weather resistant

  • Hospital Grade: Suitable for heavy use in medical or commercial settings

  • Visual Indicators: Displays power status, trip condition, ground fault detection, and end-of-life alerts on device face

  • Line/Load Protection: Includes line/load wiring configuration detection

  • Mounting Type: Flush mount; includes mounting hardware; back and side wiring options via screw terminals

  • Contact Material/Housing Material: Brass contacts with nylon housing construction
