  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Red

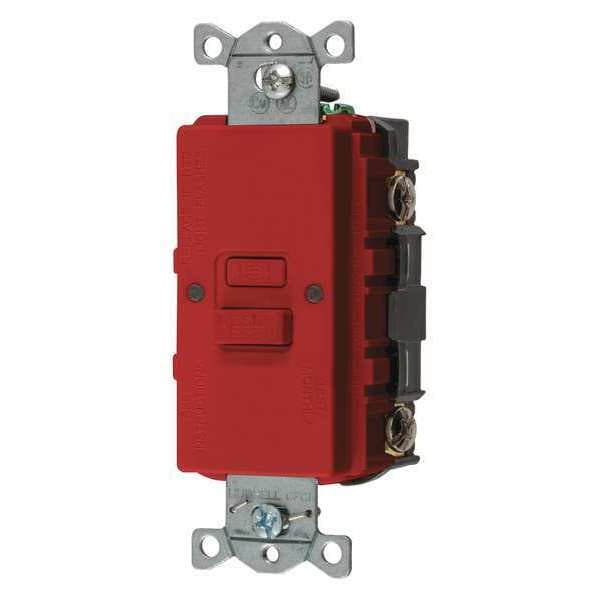

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Red GFBFST20R - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Red

  • Mfr # GFBFST20R

  • Zoro # G0087985

product price: $28.01
/ea

Key Features

Current Rating
20 A
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
6
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFBFST20R
Zoro #
G0087985
UPC #
883778122224
Country of Origin
China

Dimensions

Overall Width
1.75 in
Mount Hole Center-to-Center Height
3.27 in
Overall Depth
1.47 in

Details

Item
GFCI Receptacle
Current Rating
20 A
Housing Color
Red
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
6
Number of Poles
2
Number of Wires
3
Standards
ADA, CSA Certified, Meets All NEC(R) Requirements, UL Listed
Mounting Type - Plugs and Receptacles
Flush
Item - Plugs and Receptacles
Receptacle
Self-Testing
Yes
Surge Suppression
No
Outlet Type
Blank Face
Power Indicator
No
Voltage - Plugs and Receptacles
125V AC
Amps - Plugs and Receptacles
20 A
Outlet Type - Plugs and Receptacles
Blank Face
NEMA Receptacle Configuration - Plugs and Receptacles
No Configuration
Weather Resistant
No
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Back and Side
Reset Type
Automatic
HP
1 hp
Amps - Plugs and Receptacles
20
Weather Resistant - Plugs and Receptacles
No
Wiring Method
Back
Color
Red
Color - Plugs and Receptacles
Red
NEMA Configuration
None
Amps
20A
Tamper Resistant
No
Voltage
125VAC
Features
Internal Back Wiring Clamp and Guide for Quick and Secure Termination, Patented AUTOGUARD(R) Self Test Technology, Triple Wipe Construction
Grade
Commercial
Self Testing
Yes
Horsepower Rating
1 hp
Mount Type
Flush
Contact Material
Brass
Includes Mounting Hardware
Yes
Wire Connection Type
Screw Terminals
Voltage Rating
125V AC
Market
Commercial
For Environment
Damp
Type
Standard
Series
Heavy Duty
Voltage Rating Description
125 V
Industry Standard(s)
Meets All NEC® Requirements
Style
Blank Face
Amperage Rating
20 A
Current / Amperage Rating
20 A

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Patented AUTOGUARD® self test technology
• Internal back wiring clamp and guide for quick and secure termination
• Triple wipe construction
