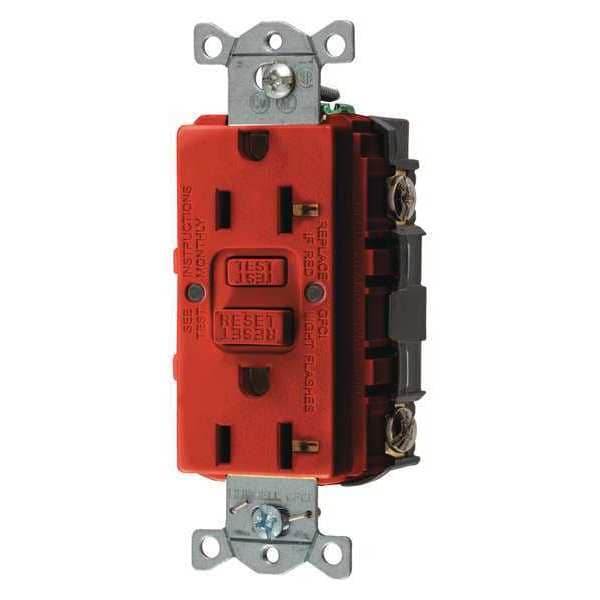

  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Red
Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Red GFR20R - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Red

  • Mfr # GFR20R

  • Zoro # G0088046

product price: $26.66
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR20R
Zoro #
G0088046
UPC #
883778122149
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Overall Depth
1.5 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Tamper Resistant
No
NEMA Configuration
5-20
Voltage
125VAC
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Self-Testing
Yes
Item - Plugs and Receptacles
Receptacle
Wiring Method
Back, Side
Wiring Method - Plugs and Receptacles
Back and Side
Color - Plugs and Receptacles
Red
Application Environment
Industrial
Voltage - Plugs and Receptacles
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Color
Red
Reset Type
Automatic
Outlet Type
Decorator
Amps - Plugs and Receptacles
20
Power Indicator
Yes
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Amps - Plugs and Receptacles
20 A
Amps
20A
Market
Commercial, Industrial
Self Testing
Yes
Mount Type
Flush
Grade
General Use
Contact Material
Brass
Number of Gangs
1
Receptacle Type
Duplex
Shrouded
No
AFCI
No
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Surge Protection
No
Includes
Mounting Hardware
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Voltage Rating
125V AC
Includes Mounting Hardware
Yes
Flange Type
Non-Flanged
Type
Standard
Nema Rating
5-20R
Voltage Rating Description
125 V
Amperage Rating
20 A
Current / Amperage Rating
20 A
Series
Heavy Duty
Style
Standard
Industry Standard(s)
Meets All NEC® Requirements

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1 hp
