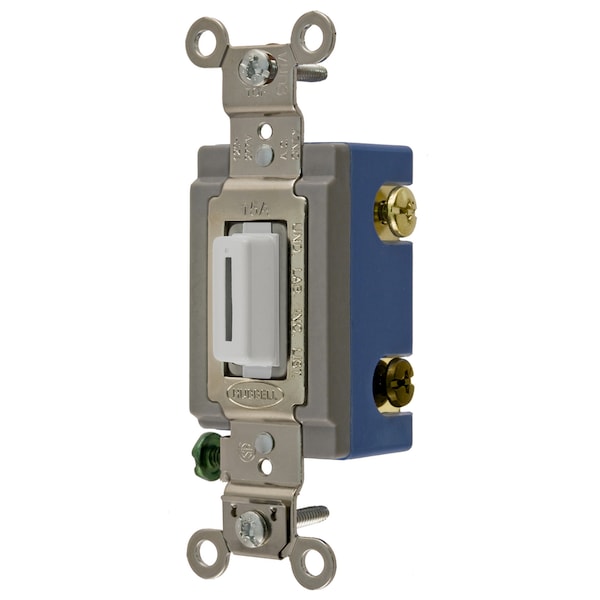

Hubbell Wiring Device-Kellems HBL Extra Heavy Duty Industrial Locking Switch HBL1203LW - main

HBL Extra Heavy Duty Industrial Locking Switch

  • Mfr # HBL1203LW

  • Zoro # G100702078

product price: $39.25
/ea

Key Features

Color
White
Style
Three Way
Type
Locking
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1203LW
Zoro #
G100702078
UPC #
783585188522
Country of Origin
China

Dimensions

Dimensions
4.06 in x 1.31 in x 1.13 in
Wire Size
#14 AWG to #10 AWG

Details

Color
White
Style
Three Way
Type
Locking
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage
15 A
Connectivity
Back and Side Wired
Action
SPDT
Voltage Rating
120-277 VAC
Series
Extra Heavy Duty
Temp. Rise
30°C maximum at rated current
Number Of Poles
Single Pole
Carton Quantity
10
Current Rating
15 A
Max. Continuous Current
15A
Top Material
Thermoset
Terminal Screws
Brass
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Ground Screw
Brass (Green)
Base Material
Thermoset, Blue
Contacts
Silver Alloy
Toggle Material
Metallic, White
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, ThreeWay, 15A 120/277V AC, Back and Side Wired, White
