  11. Hbl4100Mi9Wr Mechanical Interlock

This item is Discontinued.

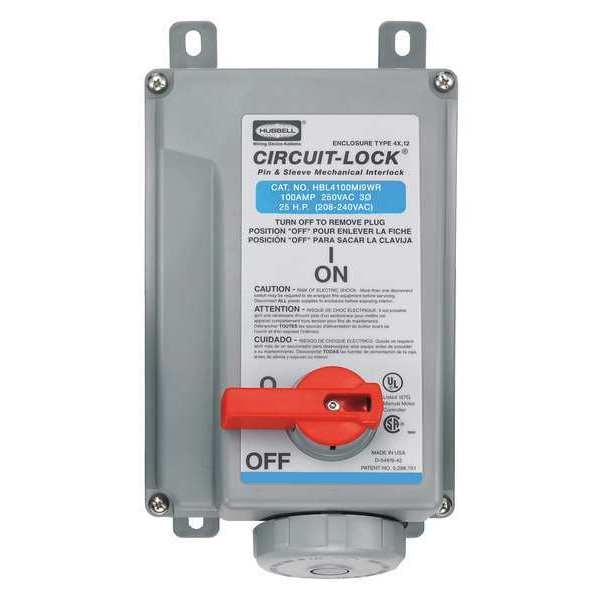

Hubbell Wiring Device-Kellems Hbl4100Mi9Wr Mechanical Interlock HBL4100MI9WR

Hbl4100Mi9Wr Mechanical Interlock (Discontinued)

  • Mfr # HBL4100MI9WR
  • Zoro # G3163837
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4100MI9WR
Zoro #
G3163837
UPC #
783585012681
Country of Origin
United States

Dimensions

Wire Size
#3 AWG to #1/0 AWG
Display Size
Standard Sized Product

Details

Item
Hbl4100Mi9Wr Mechanical Interlock
Type
Mechanical Interlock
Voltage
3 Phase 250V
Phase
Three Phase
Material
Thermoplastic
Color
blue
Shaft
VALOX
Ingress Protection
IP67 Suitability
Terminal Identification
Terminals identified in accordance with North American and International conventions.
Max Working Voltage
600V AC RMS
Conduit Hub
Zinc, Watertight
Assembly Screws
Stainless Steel (300 series)
Mechanical Interlock Device Standard
IEC
Operating Temperatures
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact.
Moisture Resistance
Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids).
Flammability
UL94-5VA and V-0 classification.
Enclosure Inserts
Brass
Terminal Accommodations
#2 To #10 AWG copper wire only
Dielectric Withstand Voltage
Withstands 3,000V AC Min.
Base
VALOX
Service Style
Reversed
Impact Resistance
In accordance with UL746C
Gaskets
Neoprene
Shaft Seal
Neoprene
UV Resistance
All materials are UV Stabilized.
Hinge Spring
Stainless Steel (300 series)
Amperage
100A
Product Type
mechanical-interlock
Certification
UL Listed, CSA Certified
Certifications
UL Listed, CSA Certified.
Poles and Wires
3 Pole, 4 Wire
Short Circuit Withstand
Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Mechanical Interlock Items
Complete Unit
Current Interrupting
Certified for current interrupting at full rated current.
Enclosure Hinge Pins
Nickel Plated Brass
Endurance
Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
Handle
Valox
Item Type
Mechanically Interlocked Single, Reversed
Number Of Poles
3-Pole
Current / Amperage Rating
100 A
Voltage Rating Description
3 Phase 240 VAC
Series
Unfused Circuit-Lock
OEM Brand Name
Hubbell Wiring Device-Kellems
Current Rating
100 A
Number Of Wires
4-Wire
Nema Rating
Non-NEMA
Environmental Conditions
Watertight
Amperage Rating
100 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Material - Mounting Hardware
Screw Mounting
Wattage
25000
Style
Reverse Service
Application
High Ampacity Watertight Connections
Connectivity
Pressure Terminal Screws
Industry Standard(s)
UL Listed

Description

Hbl4100Mi9Wr Mechanical Interlock
