Item

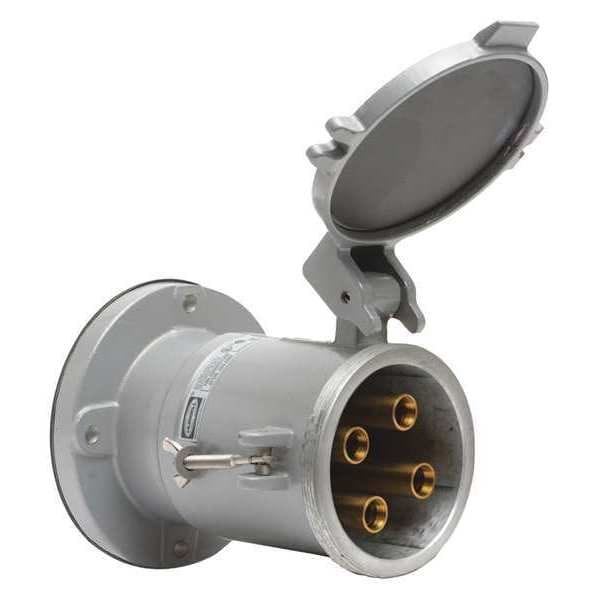

Hbl4200Rs2Wr Was Grain Parts 72K517
Spring Guide
Stainless Steel (300 series)
Terminal Screws
Heat treated and Zinc Plated Steel
Mounting Screws
Stainless Steel (300 Series)
Cord Accommodation
Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
Spring Washer
Stainless Steel (300 series)
Poles and Wires
3 Pole, 4 Wire
Insulgrip Grounding Style
Style II
Terminal Identification
Terminals identified in accordance with UL1686 (1, 2, 3, Green).
Certification
UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only), CSA Certified to CSA C22.2 No. 182.1, No.94 and No. 159 (plugs only), UL Listed and CSA Certified Type 4X.
Flammability
UL 94V-0 and CSA C22.2 No.0.17
Temperature Rise
Max 30° C temperature rise at full rated current after 50 cycles of overload at 150% of rated current.
Cover
Epoxy Painted Aluminum
Contact Carrier
Thermoset Polyester
Terminal Accommodations
#1 To #250 KCMIL copper wire only
Arm Spring
Stainless Steel (300 series)
Retainer
Thermoset Polyester
Moisture Resistance
Type 3, 4, 4X per UL 50 and CSA C22.2, No. 94.
Ground/Phase Sleeve
Brass
Cover Arm
Epoxy Painted Aluminum
Product Type
insulgrip-devices
Assembly Screws
Stainless Steel (300 series)
Mounting Flange
Epoxy Painted Aluminum
Cover Screw/Rivet
Aluminum
Operating Temperatures
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Cord Grip Retention
Per CSA C22.2 N0. 182.1 / UL1682
Dielectric Withstand Voltage
Withstands 3,000V AC Min.
Max Working Voltage
600V AC RMS (i.e., minimum creepage and clearance distance of 6.4 mm, per UL 1682).
Housing
Epoxy Painted Aluminum
Impact Resistance
Per CSA C22.2 N0. 182.1 / UL1682
Springs, Arm and Wave
Stainless Steel (300 series)
Current Interrupting
Certified for current interrupting at full rated current.
Endurance
Up to 1,000 connect and disconnect cycles at full rated current and voltage.
Certifications
UL Listed, UL Standard 1682, UL 50, and UL 1010 (plugs only) CSA Certified to CSA Spec. C22.2 No. 182.1, No. 94 and No. 159 (plugs only) UL Listed, CSA Certified Type 4X.
Ingress Protection
IP 66 Suitability
Item Type
Single Flanged-Reversed
Voltage Rating Description
600V AC/250V DC
Series
UL 1686 Class 1 Insulgrip®
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 3,000V AC
Electrical - Max. Working Voltage - 600V AC RMS
Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17
Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94
Environmental - Operating Temperatures - Max. Continuous 75°C
Min. -40°C w/o impact -25° with impact
Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682
Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing
Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
Current / Amperage Rating
200 A
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Metallic with Nylon Shroud
Style
Reversed Service,Style 2 Grounding
Type
Watertight Receptacle
Industry Standard(s)
CSA Certified to CSA Spec. C22.2 No. 182.1
UL Listed and CSA Certified Type 4X
UL Standard 1682
Environmental Conditions
Watertight
Connectivity
Pressure Terminal Screws
