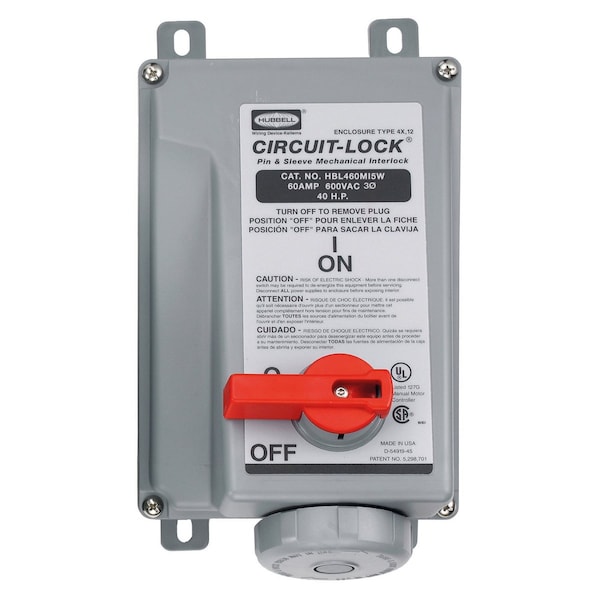

Hubbell Wiring Device-Kellems Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Delta 600V AC, HBL460MI5WR - main

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Delta 600V AC,

  • Mfr # HBL460MI5WR

  • Zoro # G500701329

product price:  $1,863.99
/ea
Free Shipping & Returns

Key Features

Phase
3
Number of Poles
3
Number of Wires
4
Features
IEC Mechanical Interlock, UV Stabilized
Material
Thermoplastic
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL460MI5WR
Zoro #
G500701329
UPC #
783585012629
Country of Origin
United States

Dimensions

Wire Size
2 to 10 AWG
Display Size
Standard Sized Product

Details

Phase
3
Number of Poles
3
Number of Wires
4
Features
IEC Mechanical Interlock, UV Stabilized
Material
Thermoplastic
Body Material - Pin and Sleeve
Valox
Standards
UL Listed, CSA Certified, UL746C
Color
Black
Color - Plugs and Receptacles
black
NEMA Rating
4X, 12
Type
Watertight Receptacle
Amps - Plugs and Receptacles
60 A
Voltage
600V
Application
High Ampacity Watertight Connections
IP Rating
IP67
Operating Temp. Range
-40° C to 75° C
Style
Reverse Service
Current Rating
60 A
Series
Unfused Circuit-Lock
Amperage Rating
60 A
Wattage
36000
OEM Brand Name
Hubbell Wiring Device-Kellems
Voltage Rating Description
3 Phase 600 VAC
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Industry Standard(s)
UL Listed
Connectivity
Pressure Terminal Screws
Item Type
Mechanically Interlocked Single, Reversed
Current / Amperage Rating
60 A
Environmental Conditions
Watertight

Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws,Black, Watertight- Reversed
