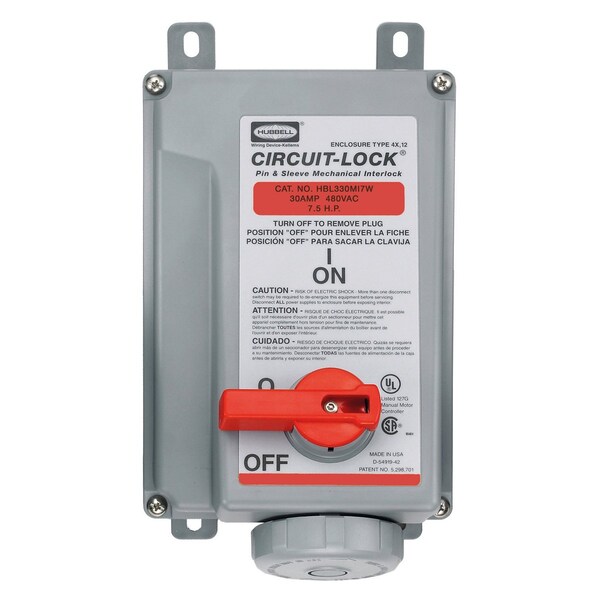

Hubbell Wiring Device-Kellems Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 480V AC, 2-Pole 3- Wire Grounding, Watertight HBL330MI7W - main

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 480V AC, 2-Pole 3- Wire Grounding, Watertight

  • Mfr # HBL330MI7W

  • Zoro # G400701894

product price:  $1,222.99
/ea
Free Shipping & Returns

Key Features

Phase
Single Phase
Number of Poles
2
Number of Wires
3
NEMA Rating
4X, 12
Voltage
480V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL330MI7W
Zoro #
G400701894
UPC #
783585405834
Country of Origin
United States

Dimensions

Wire Size
4 to 12 AWG
Display Size
Standard Sized Product

Details

Phase
Single Phase
Number of Poles
2
Number of Wires
3
NEMA Rating
4X, 12
Voltage
480V
Amps - Plugs and Receptacles
30 A
HP
7.5
Standards
UL Listed, CSA Certified, UL746C
Material
Thermoplastic
Color
Red
Type
Watertight Receptacle
Body Material - Pin and Sleeve
Valox
Color - Plugs and Receptacles
Red
Features
IEC Mechanical Interlock, UV Stabilized
Application
High Ampacity Watertight Connections
IP Rating
IP67
Operating Temp. Range
-40° C to 75° C
Wattage
14400
Style
Standard Service
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Connectivity
Pressure Terminal Screws
Amperage Rating
30 A
Series
Unfused Circuit-Lock
OEM Brand Name
Hubbell Wiring Device-Kellems
Current / Amperage Rating
30 A
Current Rating
30 A
Voltage Rating Description
480 VAC
Industry Standard(s)
UL Listed
Item Type
Mechanically Interlocked Single
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Watertight

Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,30A 480V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Red, Watertight
