  6. Illuminatd Wall Swtch, 3-Way, 20A, Wht, 120V

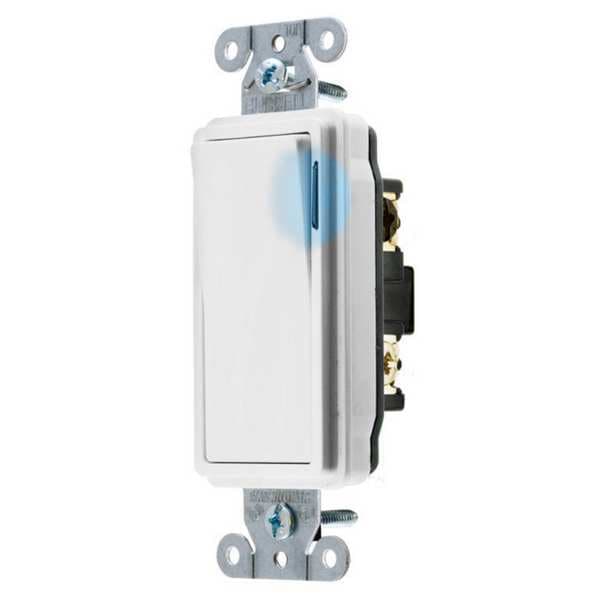

Hubbell Wiring Device-Kellems Illuminatd Wall Swtch, 3-Way, 20A, Wht, 120V DS320ILW - main

Illuminatd Wall Swtch, 3-Way, 20A, Wht, 120V

  • Mfr # DS320ILW

  • Zoro # G0922302

product price:  $37.39
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DS320ILW
Zoro #
G0922302
UPC #
783585154596
Country of Origin
China

Dimensions

Overall Height
1.5 in
Overall Width
1.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Width
1.43 in
Length
4.28 in
Height
1.54 in
Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Rated HP
1
Description/Special Features
Light On with Load Off
Antimicrobial
No
Standards
UL Listed
Voltage
120/277V AC
Housing Material
Thermoplastic
Horsepower Rating
1 hp
Market
Commercial
Features
Automatic Self-Grounding Staple
Voltage Rating
120/277V AC
Resistance Properties
Impact Resistant
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Number of Switches
1
Grounding
Grounded
Current Rating
20 A
Illuminated
Yes
Maximum Operating Temperature
75 Degrees C
Type
Rocker/Decorator
Style
Three Way
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Wiring Style
Back and Side Wired
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Amperage
20A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions
2
Switch Grade
Illuminated Decorator Series
Listing and Certifications
UL Listed and CSA Certified
Overload
Minimum 4.8 times rated current for 100 cycles
Product Type
Toggle-switches
Rocker Color
White
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Indicator
Light On with Load Off
Current / Amperage Rating
20 A
Connectivity
Back and Side Wired
Series
Illuminated
Action
SPDT
Indicator(s) Type
Blue LED
Industry Standard(s)
UL Listed
Item Type
Three Way Style Line Illuminated Decorator Switch
Amperage Rating
20 A
Material
Thermoplastic

Description

Wall Switch, Color White, Current Rating 20 A, Illuminated Yes, Pilot Light No, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating Not Applicable, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals
