- MFR #
- HBL1224
- Zoro #
- G2592685
- UPC #
- 783585432021
- Country of Origin
- China

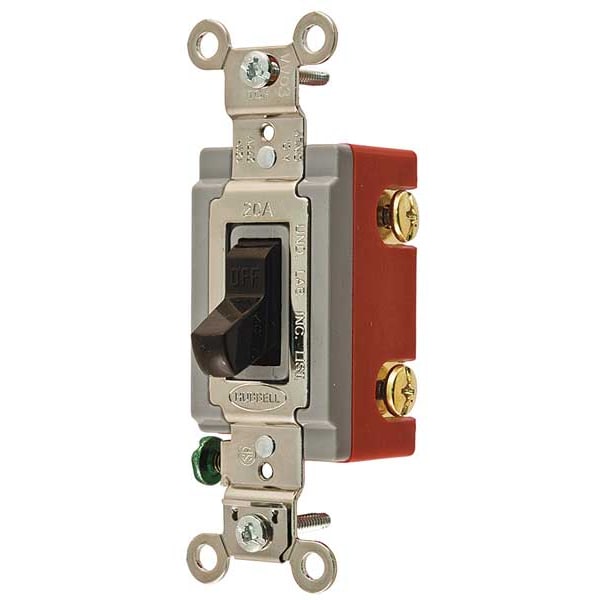

- Item
- Wall Switch
- Switch Type
- 4-Way
- Switch Style
- Toggle
- Amps AC
- 20 A
- Color
- Brown
- Voltage AC
- 120 to 277
- Locking
- No
- Switch Function
- Maintained
- Wiring Method
- Back/Side
- Application Environment
- Industrial
- Antimicrobial
- No
- Standards
- UL Listed
- Rated HP
- 1
- Voltage
- 120/277V AC
- Voltage Rating
- 120/277V AC
- Resistance Properties
- Shatter and Crack Resistant, Impact Resistant
- Maximum Operating Temperature
- 167 Degrees F
- Wire Connection Type
- Screw Terminals
- Market
- Industrial
- Number of Switches
- 1
- Minimum Operating Temperature
- -40 Degrees F
- Features
- Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
- Current Rating
- 20 A
- Switch Material
- Nylon
- Type
- Toggle
- Style
- Four Way
- Wiring Style
- Back and Side Wired
- Terminal Accommodations
- #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Flammability
- UL 94V-2
- Switch Handle Positions
- 2
- Max. Working Voltage
- 277V AC
- Max. Continuous Current
- 20A
- Amperage
- 20A
- Dielectric Voltage
- Withstands 1500V AC minimum for 1 minute
- Switch Grade
- Industrial
- Operating Temperature
- Max. continuous: 75°C; Min. continuous: -40°C without impact
- Listing and Certifications
- Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
- Operating Temperatures
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Temperature Rise
- 30°C maximum at rated current
- Toggle Color
- Brown
- Product Type
- Toggle-switches
- Overload
- Minimum 4.8 times rated current for 100 cycles
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Amperage Rating
- 20 A
- Voltage Rating Description
- 120-277 VAC
- Action
- DPDT
- Connectivity
- Back and Side Wired
- Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
Electrical - Max. Continuous Current - 20A
Electrical - Max. Working Voltage - 277V AC
Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
Electrical - Temperature Rise - 30°C maximum at rated current
Environmental - Flammability - UL 94V-2
Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Industry Standard(s)
- UL Listed
- Number Of Poles
- Double Pole
- Series
- Extra Heavy Duty
- Current / Amperage Rating
- 20 A
- Temperature Rise - Max.
- 30°C maximum at rated current
- Application
- Back and Side Wired
- Grounding
- Grounded
- Nightlight
- No
- Illuminated
- No
