  11. Illuminated Wall Switch, 1-Pole, 15A, Blk

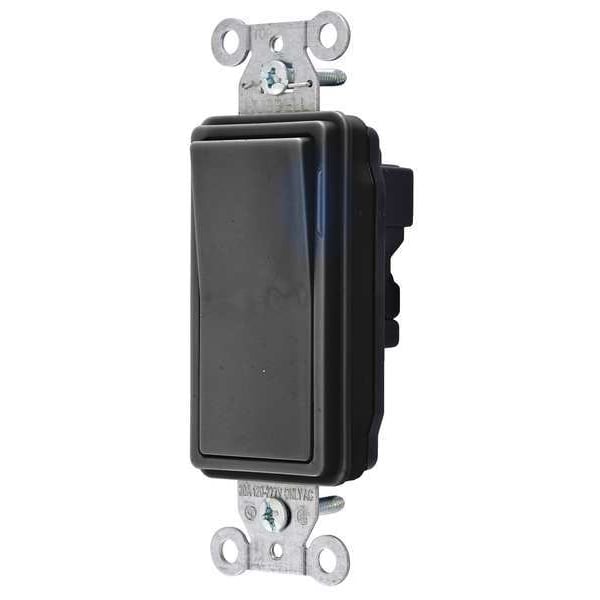

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 1-Pole, 15A, Blk SNAP2101ILBK - main

Illuminated Wall Switch, 1-Pole, 15A, Blk

  • Mfr # SNAP2101ILBK

  • Zoro # G4540627

product price: $26.06
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2101ILBK
Zoro #
G4540627
UPC #
783585186405
Country of Origin
United States

Dimensions

Overall Width
1.4 in
Overall Height
1.5 in
Height
1.54 in
Width
1.44 in
Length
4.28 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Light On with Load Off
Rated HP
1/2 to 2
Antimicrobial
No
Standards
UL Listed
Resistance Properties
Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Wire Connection Type
Modular Wiring
Illuminated
Yes
Horsepower Rating
2 hp
Grounding
Grounded
Current Rating
15 A
Housing Material
Thermoplastic
Market
Industrial
Voltage Rating
120/277V AC
Maximum Operating Temperature
167 Degrees F
Number of Switches
1
Style
Single Pole
Type
Rocker/Decorator
Overload
Minimum 4.8 times rated current for 100 cycles
Contacts
Silver Alloy
Terminals
Brass
Base Material
Thermoplastic, Black
Toggle Color
Black
Max. Continuous Current
15A
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Terminal Accommodations
Uses SNAPConnect Connector
Max. Working Voltage
277V AC
Top Material
Thermoplastic, Blue
Rocker Material
Thermoplastic
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Style Line Illuminated Decorator Switch
Series
Illuminated
Industry Standard(s)
UL Listed
Material
Thermoplastic
Amperage Rating
15 A
Indicator(s) Type
Blue LED
Indicator
Light On with Load Off
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
15 A
Number Of Poles
Single Pole

Description

Illuminated Wall Switch, Color Black, Current Rating 15 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
