  11. Illuminated Wall Switch, 3-Way, 20A, Black

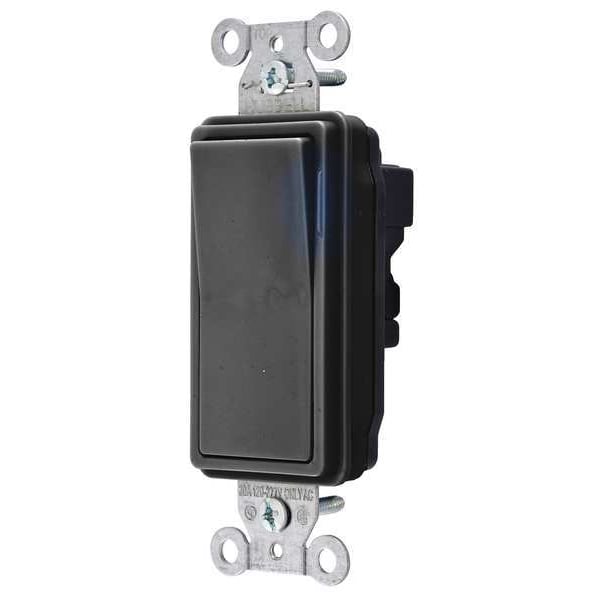

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 3-Way, 20A, Black SNAP2123ILBK - main

Illuminated Wall Switch, 3-Way, 20A, Black

  • Mfr # SNAP2123ILBK

  • Zoro # G4604914

product price: $51.65
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2123ILBK
Zoro #
G4604914
UPC #
783585186436
Country of Origin
China

Dimensions

Overall Height
1.5 in
Overall Width
1.4 in
Length
4.28 in
Height
1.54 in
Width
1.44 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Description/Special Features
Light On with Load Off
Antimicrobial
No
Rated HP
1 to 2
Voltage Rating
120/277V AC
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Illuminated
Yes
Resistance Properties
Impact Resistant
Maximum Operating Temperature
167 Degrees F
Grounding
Grounded
Market
Industrial
Housing Material
Thermoplastic
Number of Switches
1
Current Rating
20 A
Wire Connection Type
Modular Wiring
Style
Three Way
Type
Rocker/Decorator
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Toggle Color
Black
Base Material
Thermoplastic, Black
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
20A
Temperature Rise
30°C maximum at rated current
Top Material
Thermoplastic, Red
Terminal Accommodations
Uses SNAPConnect Connector
Terminals
Brass
Contacts
Silver Alloy
Overload
Minimum 4.8 times rated current for 100 cycles
Rocker Material
Thermoplastic
Max. Working Voltage
277V AC
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Item Type
Three Way Style Line Illuminated Decorator Switch
Current / Amperage Rating
20 A
Series
Illuminated
Material
Thermoplastic
Action
SPDT
Temperature Rise - Max.
30°C maximum at rated current
Indicator
Light On with Load Off
Amperage Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Indicator(s) Type
Blue LED
Industry Standard(s)
UL Listed

Description

Illuminated Wall Switch, Color Black, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
