  11. Illuminated Wall Switch, 3-Way, 20A, Ivory

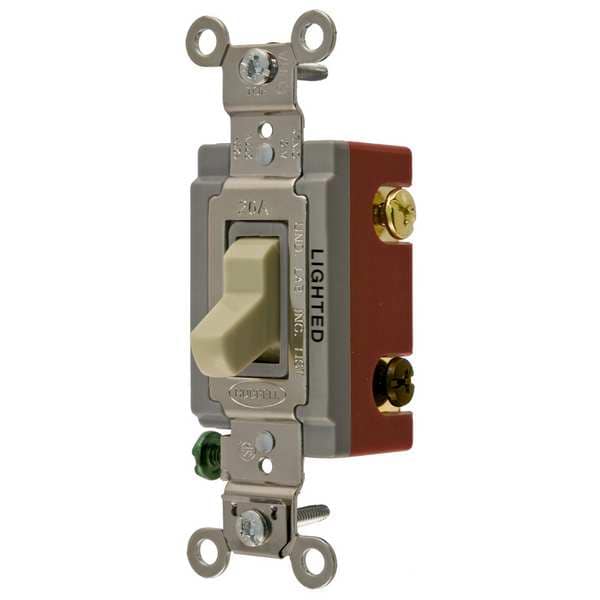

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 3-Way, 20A, Ivory HBL1223IL - main

Illuminated Wall Switch, 3-Way, 20A, Ivory

  • Mfr # HBL1223IL

  • Zoro # G2802527

product price: $70.95
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1223IL
Zoro #
G2802527
UPC #
783585431840
Country of Origin
China

Dimensions

Overall Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Height
1.9 in
Height
1.86 in
Length
4.06 in
Width
1.31 in
Dimensions
4.06 in x 1.31 in x 1.86 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
1
Description/Special Features
Light On with Load Off
Antimicrobial
No
Standards
UL Listed
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Number of Switches
1
Switch Material
Nylon
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Current Rating
20 A
Voltage Rating
120/277V AC
Maximum Operating Temperature
167 Degrees F
Illuminated
Yes
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Type
Toggle
Style
Three Way
Nylon Wall Plate
NP1I
Approvals
UL, CSA
Overload
Minimum 4.8 times rated current for 100 cycles
Toggle Color
Ivory
Rating
20A 120/277V
Product Type
AC Special Purpose Switches
Max. Continuous Current
20A
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Actuator Type
Toggle
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Enhancement
Illuminated
Series
Extra Heavy Duty
Voltage Rating Description
120-277 VAC
Industry Standard(s)
UL Listed
Action
SPDT
Item Type
Three Way Illuminated Toggle Switch
Connectivity
Back and Side Wired
Current / Amperage Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Application
Back and Side Wired
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Indicator
Light On with Load Off
Amperage Rating
20 A

Description

Illuminated Wall Switch, Color Ivory, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
