  6. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Back and Side Wired, Red

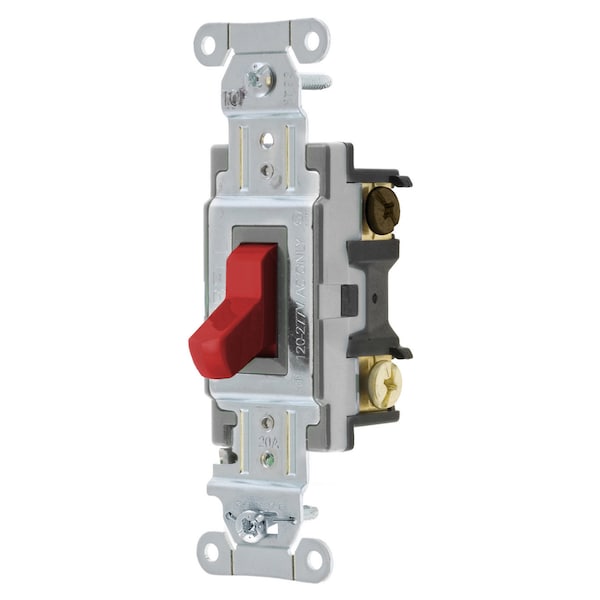

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Back and Side Wired, Red CSB320R - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Back and Side Wired, Red

  • Mfr # CSB320R

  • Zoro # G400701412

product price:  $9.99
/ea

Key Features

Switch Type
Three Way
Color
Red
Height
1.83 in
Style
Three Way
Voltage
120/277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSB320R
Zoro #
G400701412
UPC #
783585154251
Country of Origin
China

Dimensions

Height
1.83 in
Width
1.49 in
Length
4.18 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Three Way Commercial Toggle Switch
Switch Type
Three Way
Color
Red
Style
Three Way
Voltage
120/277V AC
Type
Toggle
Amperage
20 A
Connectivity
Back and Side Wired
Current Rating
20 A
Carton Quantity
10
Temp. Rise
30°C maximum at rated current
Voltage Rating
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Action
SPDT
Series
General Purpose
Material
Nylon
Max. Continuous Current
20A
Temperature Rise
30°C maximum at rated current
Switch Grade
Specification Grade
Wiring Style
Back and Side Wired
Product Type
Toggle-switches
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions
2
Toggle Color
Red
Max. Working Voltage
277V AC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Industry Standard(s)
UL Listed
Item Type
Three Way Commercial Toggle Switch
Amperage Rating
20 A
Current / Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Three Way, 20A 120/277V AC, Back and SideWired, Red
