  11. Illuminated Wall Switch, 3-Way, 20A, Red

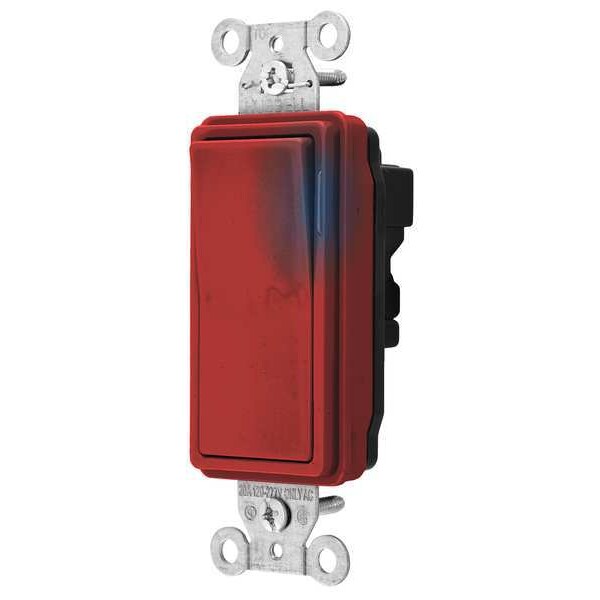

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 3-Way, 20A, Red SNAP2123ILR - main

Illuminated Wall Switch, 3-Way, 20A, Red

  • Mfr # SNAP2123ILR

  • Zoro # G4628197

product price: $51.65
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2123ILR
Zoro #
G4628197
UPC #
783585189918
Country of Origin
China

Dimensions

Overall Height
1.5 in
Overall Width
1.4 in
Height
1.54 in
Width
1.44 in
Length
4.28 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Light On with Load Off
Standards
UL Listed
Antimicrobial
No
Rated HP
1 to 2
Voltage Rating
120/277V AC
Number of Switches
1
Wire Connection Type
Modular Wiring
Grounding
Grounded
Resistance Properties
Impact Resistant
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Current Rating
20 A
Illuminated
Yes
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
Style
Three Way
Type
Rocker/Decorator
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Color
Red
Max. Continuous Current
20A
Top Material
Thermoplastic, Red
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Rocker Material
Thermoplastic
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Base Material
Thermoplastic, Black
Terminals
Brass
Contacts
Silver Alloy
Terminal Accommodations
Uses SNAPConnect Connector
Temperature Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Series
Illuminated
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Material
Thermoplastic
Indicator(s) Type
Blue LED
Item Type
Three Way Style Line Illuminated Decorator Switch
Action
SPDT
Indicator
Light On with Load Off
Current / Amperage Rating
20 A
Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole

Description

Illuminated Wall Switch, Color Red, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
