  11. Wall Switch, 3-Way, 120/277V, 15A, Blk, Toggl

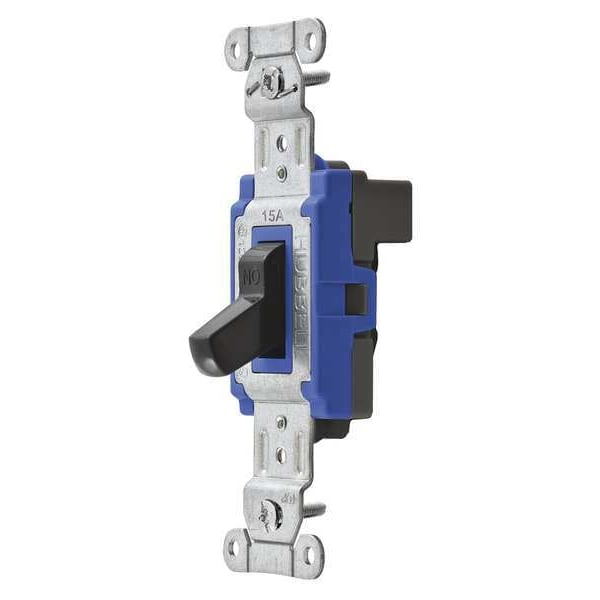

Hubbell Wiring Device-Kellems Wall Switch, 3-Way, 120/277V, 15A, Blk, Toggl SNAP1203BK - main

Wall Switch, 3-Way, 120/277V, 15A, Blk, Toggl

  • Mfr # SNAP1203BK

  • Zoro # G4590756

product price: $11.15
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1203BK
Zoro #
G4590756
UPC #
783585186054
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Width
1.3 in
Height
1.74 in
Length
4.18 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Antimicrobial
No
Standards
UL Listed
Rated HP
1/2 to 2
Wire Connection Type
Modular Wiring
Grounding
Grounded
Horsepower Rating
2 hp
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Resistance Properties
Impact Resistant
Housing Material
Thermoplastic
Number of Switches
1
Market
Industrial
Voltage Rating
120/277V AC
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Current Rating
15 A
Style
Three Way
Type
Toggle
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoplastic, Blue
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
Black
Terminals
Brass
Contacts
Silver Alloy
Base Material
Thermoplastic, Black
Terminal Accommodations
Uses SNAPConnect Connector
Max. Continuous Current
15A
Temperature Rise
30°C maximum at rated current
Toggle Material
Thermoplastic
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Action
SPDT
Number Of Poles
Single Pole
Voltage Rating Description
120-277 VAC
Amperage Rating
15 A
Item Type
Three Way Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Industry Standard(s)
UL Listed
Series
General Purpose
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Material
Thermoplastic
Current / Amperage Rating
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute

Description

Wall Switch, Color Black, Current Rating 15 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
