  11. Illuminated Wall Switch, 3-Way, 20A, White

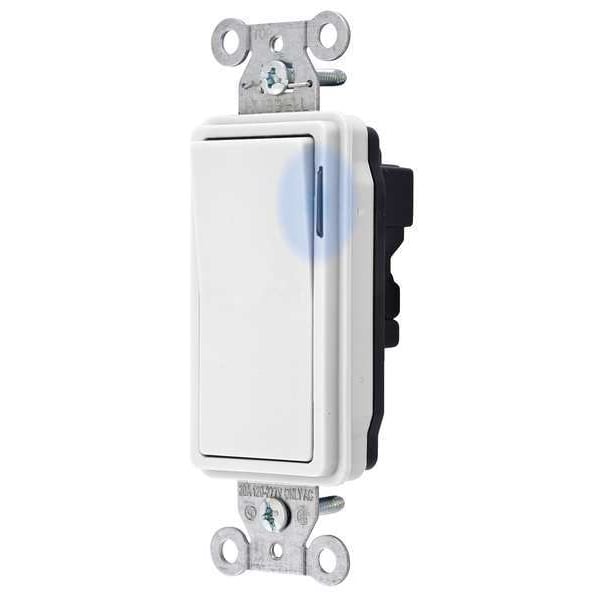

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 3-Way, 20A, White SNAP2123ILW - main

Illuminated Wall Switch, 3-Way, 20A, White

  • Mfr # SNAP2123ILW

  • Zoro # G4528684

product price: $51.65
/ea
Sold in multiples of 10 for $516.50

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2123ILW
Zoro #
G4528684
UPC #
783585189932
Country of Origin
United States

Dimensions

Overall Width
1.4 in
Overall Height
1.5 in
Width
1.44 in
Length
4.28 in
Height
1.54 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Rated HP
1 to 2
Description/Special Features
Light On with Load Off
Antimicrobial
No
Current Rating
20 A
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Number of Switches
1
Market
Commercial
Wire Connection Type
Modular Wiring
Resistance Properties
Impact Resistant
Grounding
Grounded
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
2 hp
Illuminated
Yes
Type
Rocker/Decorator
Style
Three Way
Temperature Rise
30°C maximum at rated current
Terminal Accommodations
Uses SNAPConnect Connector
Rocker Material
Thermoplastic
Max. Continuous Current
20A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Base Material
Thermoplastic, Black
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminals
Brass
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoplastic, Red
Contacts
Silver Alloy
Toggle Color
White
Flammability
UL 94V-2
Indicator
Light On with Load Off
Action
SPDT
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Industry Standard(s)
UL Listed
Series
Illuminated
Indicator(s) Type
Blue LED
Current / Amperage Rating
20 A
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Item Type
Three Way Style Line Illuminated Decorator Switch
Temperature Rise - Max.
30°C maximum at rated current
Material
Thermoplastic

Description

Illuminated Wall Switch, Color White, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Commercial, Maximum Operating Temperature 167 Degrees F
