  11. Ilminatd Wall Swtch, 1-Pole, 20A, Ivry, 120V

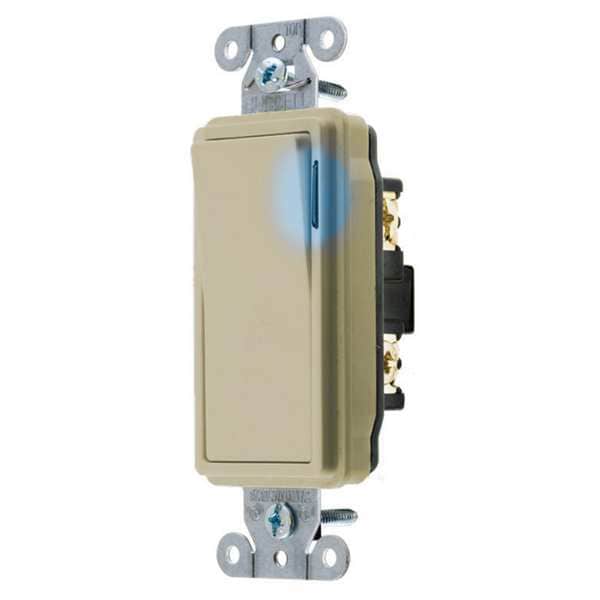

Hubbell Wiring Device-Kellems Ilminatd Wall Swtch, 1-Pole, 20A, Ivry, 120V DS120IL - main

Ilminatd Wall Swtch, 1-Pole, 20A, Ivry, 120V

  • Mfr # DS120IL

  • Zoro # G1872044

product price: $26.89
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS120IL
Zoro #
G1872044
UPC #
783585154565
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.4 in
Overall Height
1.5 in
Minimum Wire Size
14 AWG
Width
1.43 in
Length
4.28 in
Height
1.54 in
Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Rated HP
1
Description/Special Features
Light On with Load Off
Antimicrobial
No
Standards
UL Listed
Voltage
120/277V AC
Grounding
Grounded
Resistance Properties
Impact Resistant
Features
Automatic Self-Grounding Staple
Horsepower Rating
1 hp
Housing Material
Thermoplastic
Market
Commercial
Minimum Operating Temperature
-40 Degrees F
Current Rating
20 A
Wire Connection Type
Screw Terminals
Illuminated
Yes
Voltage Rating
120/277V AC
Maximum Operating Temperature
75 Degrees C
Number of Switches
1
Style
Single Pole
Type
Rocker/Decorator
Overload
Minimum 4.8 times rated current for 100 cycles
Listing and Certifications
UL Listed and CSA Certified
Amperage
20A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Product Type
Toggle-switches
Max. Working Voltage
277V AC
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Wiring Style
Back and Side Wired
Max. Continuous Current
20A
Switch Handle Positions
2
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Rocker Color
Ivory
Temperature Rise
30°C maximum at rated current
Switch Grade
Illuminated Decorator Series
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Style Line Illuminated Decorator Switch
Connectivity
Back and Side Wired
Indicator
Light On with Load Off
Industry Standard(s)
UL Listed
Series
Illuminated
Material
Thermoplastic
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Indicator(s) Type
Blue LED
Number Of Poles
Single Pole

Description

Illuminated Wall Switch, Color Ivory, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic
