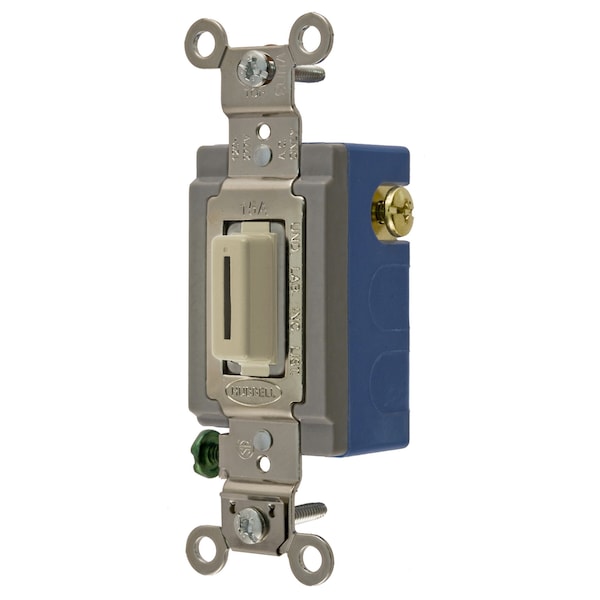

Hubbell Wiring Device-Kellems Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 15A 120/277V AC Ivory Key Guide HBL1556LI - main

Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 15A 120/277V AC Ivory Key Guide

  • Mfr # HBL1556LI

  • Zoro # G900701790

product price:  $54.35
/ea

Key Features

Color
Ivory
Type
Locking
Height
1.89 in
Series
Extra Heavy Duty
Length
4.06 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL1556LI
Zoro #
G900701790
UPC #
783585188683
Country of Origin
China

Dimensions

Height
1.89 in
Length
4.06 in
Width
1.31 in
Dimensions
4.06 in x 1.31 in x 1.89 in
Wire Size
#14 AWG to #10 AWG

Details

Color
Ivory
Type
Locking
Series
Extra Heavy Duty
Style
Single Pole Double Throw
Amperage
15 A
Voltage Rating
120-277 VAC
Contact Configuration
Momentary
Number Of Poles
Single Pole
Action
SPDT
Connectivity
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Current Rating
15 A
Base Material
Thermoset, Blue
Contacts
Silver Alloy
Key Guide
Metallic, Ivory
Nylon Wall Plate
NP1I
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Screws
Brass
Max. Continuous Current
15A
Ground Screw
Brass (Green)
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
Ivory
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoset
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Amperage Rating
15 A
Voltage Rating Description
120-277 VAC

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, MomentarySingle Pole Double Throw Center Off, 15A 120/277V AC, Terminal Screws,Ivory
