Shop HUBBELL WIRING DEVICE-KELLEMS

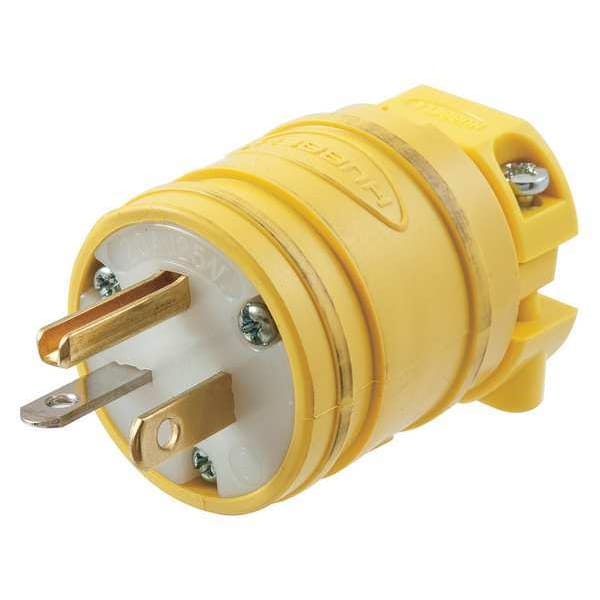

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL1433

  • Zoro # G0792547

product price:
$
22.49
/ea

Key Features

NEMA Plug Configuration
5-20P
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1433
Zoro #
G0792547
UPC #
783585013336
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.655 in
Body Length
2.19 in
Minimum Wire Size
18 AWG
Maximum Wire Size
12 AWG
Height
1.55 in
Wire Size
#18 AWG to #12 AWG
Length
2.19 in
Width
2.19 in
Dimensions
2.19 in x 2.19 in x 1.55 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Material
PVC
Number of Wires
3
Special Features
Corrosion resistant
Grade - Plugs and Receptacles
General
HP
1 hp
Voltage
125VAC
Antimicrobial
No
Phase - Plugs and Receptacles
1
Grade
General
Corrosion Resistant
Yes
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Insulation Material
Elastomer
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
Housing Material
Polycarbonate
UL 94 Flammability Rating
HB
Horsepower Rating
1/2 hp
Body Material
Impact Modified Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Environment
Dry
Weight (Lbs.)
0.2
Contact Blades Material
.060" (1.5) Brass
Body Style
Straight
Blade Material
Solid Brass
Enhancement
Dust Tight
Retainer Material
Polycarbonate-Clear
Dielectric Strength
Withstands 2000V per UL498
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Cord Clamp Material
Nylon-Yellow
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Flammability
Rated HB or better UL94
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Blade Holder Material
Nylon-Natural
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series
Elastogrip
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Industrial/Commercial Grade
Material - Mounting Hardware
Cord Mounted
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Style
Standard
Horsepower - Maximum
0.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

Dust Tight Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Yellow, IP Rating IP20, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant, UL 94 Flammability Rating HB, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard
