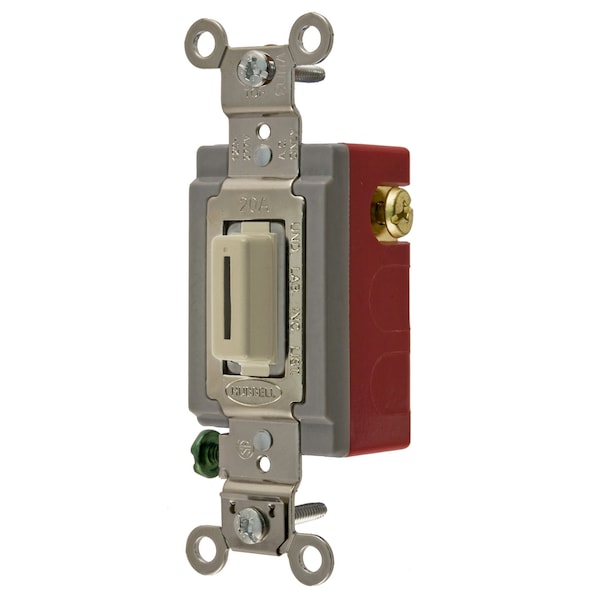

Hubbell Wiring Device-Kellems Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC Ivory Key Guide HBL1557LI - main

Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC Ivory Key Guide

  • Mfr # HBL1557LI

  • Zoro # G500702418

product price:  $64.95
/ea

Key Features

Color
Ivory
Series
Extra Heavy Duty
Height
1.89 in
Length
4.06 in
Style
Single Pole Double Throw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL1557LI
Zoro #
G500702418
UPC #
783585188713
Country of Origin
China

Dimensions

Height
1.89 in
Length
4.06 in
Width
1.31 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.89 in

Details

Color
Ivory
Series
Extra Heavy Duty
Style
Single Pole Double Throw
Type
Locking
Contact Configuration
Momentary
Current Rating
20 A
Carton Quantity
10
Number Of Poles
Single Pole
Amperage
20 A
Action
SPDT
Application
Back and Side Wired
Connectivity
Back and Side Wired
UPC
783585000000
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating
120-277 VAC
Temp. Rise
30°C maximum at rated current
Temperature Rise
30°C maximum at rated current
Base Material
Thermoset, Red
Key Guide
Metallic, Ivory
Nylon Wall Plate
NP1I
Toggle Color
Ivory
Contacts
Silver Alloy
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Ground Screw
Brass (Green)
Terminal Screws
Brass
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Max. Continuous Current
20A
Overload
Minimum 4.8 times rated current for 100 cycles
Flammability
UL 94V-2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Top Material
Thermoset
Max. Working Voltage
277V AC
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, MomentarySingle Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws,Ivory
