  6. Kellems Wire Management, Cord Connectors, 45 Degree Male, .75-.88", 1", Aluminum

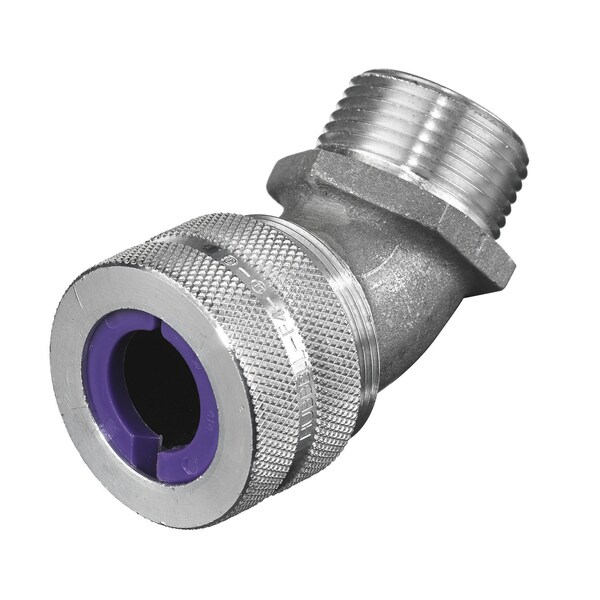

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, 45 Degree Male, .75-.88", 1", Aluminum VHC1042 - main

Kellems Wire Management, Cord Connectors, 45 Degree Male, .75-.88", 1", Aluminum

  • Mfr # VHC1042

  • Zoro # G000618493

product price:  $41.49
/ea

Key Features

Style - Connector
45 Degree Male
Cable Opening Max.
0.88 in
Color
Metallic
Type
45° Male
Cable Opening Min.
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VHC1042
Zoro #
G000618493
UPC #
783585202426
Country of Origin
United States

Dimensions

Knockout Size
1.36 to 1.41 in
Cord Dia. Range
0.75- 0.88 in (19.0- 22.2 mm)
Hub Size
1
Display Size
1 NPT

Details

Style - Connector
45 Degree Male
Cable Opening Max.
0.88 in
Color
Metallic
Type
45° Male
Cable Opening Min.
3/4 in
Item
Cord Connectors
Material
Machined Aluminum
Standards
UL 514B, CSA Certified
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Standard
UL Listed
Application
45 Degree Male- Form 4
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
10
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Series
Standard Duty
Mounting Hardware Material
Locknut or Tapped Opening
Number Of Conductors
Single
Color Code
Orchid
Nema Rating
NEMA Type 4, 4X, 12 and 13
Material - Mounting Hardware
Locknut or Tapped Opening
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Conductor Range
0.75- 0.88 in (19.0- 22.2 mm)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Industry Standard(s)
UL Listed
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Item Type
Cord Connectors

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,45 Degree Male, .75-.88", 1", Aluminum
