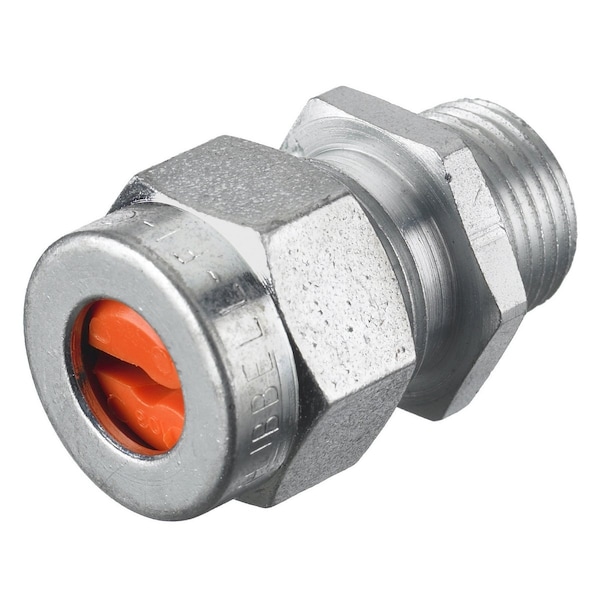

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, .13-.19", 3/8", Steel SHC1008ZP - main

Kellems Wire Management, Cord Connectors, Straight Male, .13-.19", 3/8", Steel

  • Mfr # SHC1008ZP

  • Zoro # G800618501

product price:  $13.55
/ea

Key Features

Style - Connector
Straight Male
Material
Machined Zinc- Plated Steel
Color
Metallic
Type
Straight Male
Cable Opening Min.
0.13 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SHC1008ZP
Zoro #
G800618501
UPC #
783585496009
Country of Origin
United States

Dimensions

Knockout Size
0.67 to 0.70 in
Display Size
3/8 NPT
Hub Size
3/8
Cord Dia. Range
0.13-0 .19 in (3.2- 4.7 mm)

Details

Style - Connector
Straight Male
Material
Machined Zinc- Plated Steel
Color
Metallic
Item
Cord Connectors
Type
Straight Male
Cable Opening Min.
0.13 in
Cable Opening Max.
0.19 in
Standards
UL 514B, CSA Certified
Standard
UL Listed
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Series
Standard Duty
Carton Quantity
50
Application
Straight Male- Form 1
Color Code
Orange
Nema Rating
NEMA Type 4, 4X, 12 and 13
Mounting Hardware Material
Locknut or Tapped Opening
Number Of Conductors
Single
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Brand
Hubbell Wiring Device-Kellems
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Item Type
Cord Connectors
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
0.13-0 .19 in (3.2- 4.7 mm)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Industry Standard(s)
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .13-.19", 3/8", Steel
