  6. Kellems Wire Management, Cord Connectors, Straight Male, .19-.25", 1/4", Aluminum

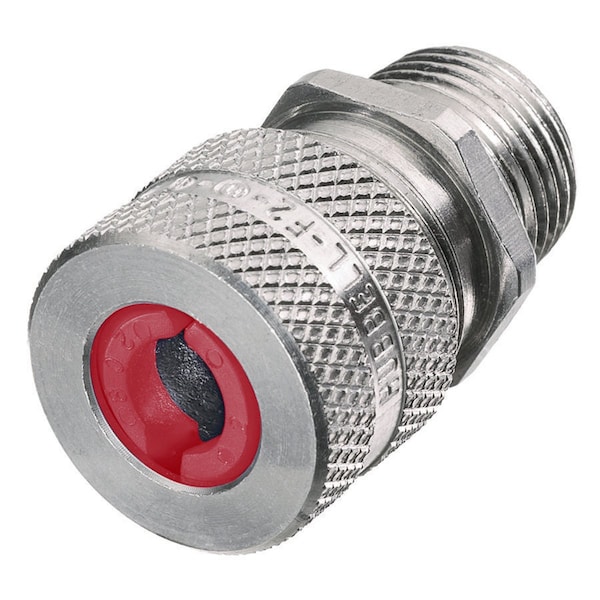

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, .19-.25", 1/4", Aluminum SHC1003 - main

Kellems Wire Management, Cord Connectors, Straight Male, .19-.25", 1/4", Aluminum

  • Mfr # SHC1003

  • Zoro # G700618496

product price:  $10.69
/ea

Key Features

Style - Connector
Straight Male
Knockout Size
0.54 to 0.57 in
Standards
UL 514B, CSA Certified
Color
Red
Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SHC1003
Zoro #
G700618496
UPC #
783585200033
Country of Origin
United States

Dimensions

Knockout Size
0.54 to 0.57 in
Cord Dia. Range
0.19-0.25 in (4.7- 6.3 mm)
Hub Size
1/4
Display Size
1/4 NPT

Details

Style - Connector
Straight Male
Item
Cord Connectors
Standards
UL 514B, CSA Certified
Color
Red
Material
Aluminum
Cable Opening Max.
1/4 in
Type
Straight Male
Cable Opening Min.
0.19 in
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Locknut or Tapped Opening
Application
Straight Male- Form 1
Series
Standard Duty
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Carton Quantity
50
Color Code
Red
Nema Rating
NEMA Type 4, 4X, 12 and 13
Standard
UL Listed
Number Of Conductors
Single
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Conductor Range
0.19-0.25 in (4.7- 6.3 mm)
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Material - Mounting Hardware
Locknut or Tapped Opening
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .19-.25", 1/4", Aluminum
