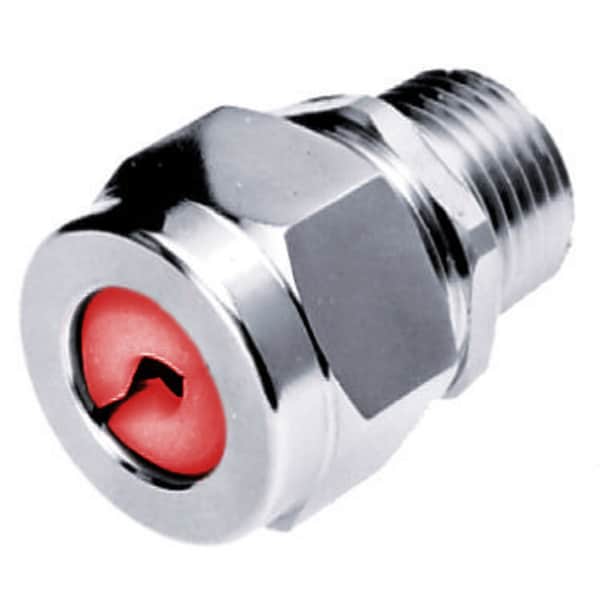

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, .19-.25", 3/4", Steel SHC1031ZP - main

Kellems Wire Management, Cord Connectors, Straight Male, .19-.25", 3/4", Steel

  • Mfr # SHC1031ZP

  • Zoro # G800618525

product price:  $15.85
/ea

Key Features

Style - Connector
Straight Male
Cable Opening Max.
1/4 in
Material
Steel, Zinc Plated
Standards
UL 514B, CSA Certified
Type
Straight Male
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SHC1031ZP
Zoro #
G800618525
UPC #
783585496108
Country of Origin
United States

Dimensions

Knockout Size
1.09 to 1.14 in
Hub Size
3/4
Display Size
3/4 NPT
Cord Dia. Range
0.19-0.25 in (4.7- 6.3 mm)

Details

Style - Connector
Straight Male
Cable Opening Max.
1/4 in
Material
Steel, Zinc Plated
Standards
UL 514B, CSA Certified
Item
Cord Connectors
Type
Straight Male
Cable Opening Min.
0.19 in
Color
Red
Nema Rating
NEMA Type 4, 4X, 12 and 13
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Locknut or Tapped Opening
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Standard
UL Listed
Color Code
Red
Number Of Conductors
Single
Carton Quantity
25
Series
Standard Duty
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Application
Straight Male- Form 2
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Industry Standard(s)
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening
Conductor Range
0.19-0.25 in (4.7- 6.3 mm)
Item Type
Cord Connectors
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .19-.25", 3/4", Steel
