  6. Kellems Wire Management, Cord Connectors, Straight Male, .31-.38", 1/4", Aluminum

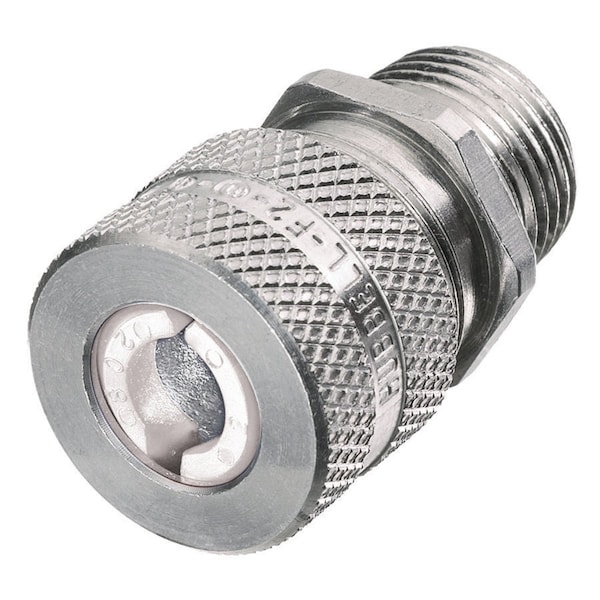

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, .31-.38", 1/4", Aluminum SHC1005 - main

Kellems Wire Management, Cord Connectors, Straight Male, .31-.38", 1/4", Aluminum

  • Mfr # SHC1005

  • Zoro # G400618512

product price:  $10.69
/ea

Key Features

Style - Connector
Straight Male
Color
White
Knockout Size
0.54 to 0.57 in
Material
Aluminum
Cable Opening Max.
0.38 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SHC1005
Zoro #
G400618512
UPC #
783585200057
Country of Origin
United States

Dimensions

Knockout Size
0.54 to 0.57 in
Hub Size
1/4
Cord Dia. Range
0.31- 0.38 in (7.9- 9.5 mm)
Display Size
1/4 NPT

Details

Style - Connector
Straight Male
Color
White
Item
Cord Connectors
Material
Aluminum
Cable Opening Max.
0.38 in
Standards
UL 514B, CSA Certified
Cable Opening Min.
0.31 in
Type
Straight Male
Number Of Conductors
Single
Application
Straight Male- Form 1
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Carton Quantity
50
Color Code
White
Nema Rating
NEMA Type 4, 4X, 12 and 13
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Series
Standard Duty
Standard
UL Listed
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Locknut or Tapped Opening
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Material - Mounting Hardware
Locknut or Tapped Opening
Conductor Range
0.31- 0.38 in (7.9- 9.5 mm)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Item Type
Cord Connectors
Industry Standard(s)
UL Listed

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .31-.38", 1/4", Aluminum
