  6. Kellems Wire Management, Cord Connectors, Straight Male, .63-.75", 1", Nylon

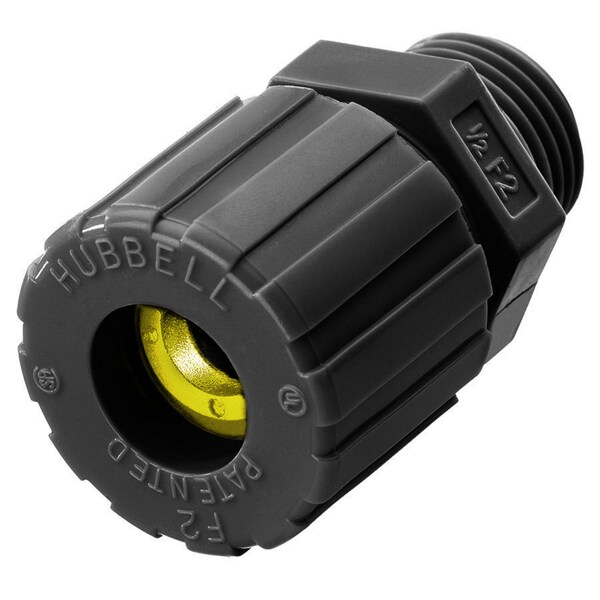

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, .63-.75", 1", Nylon SHC2041CR - main

Kellems Wire Management, Cord Connectors, Straight Male, .63-.75", 1", Nylon

  • Mfr # SHC2041CR

  • Zoro # G000618394

product price:  $14.55
/ea

Key Features

Style - Connector
Straight Male
Material
Nylon
Cable Opening Max.
3/4 in
Cable Opening Min.
5/8 in
Knockout Size
1.09 to 1.14 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SHC2041CR
Zoro #
G000618394
UPC #
783585451763
Country of Origin
United States

Dimensions

Knockout Size
1.09 to 1.14 in
Cord Dia. Range
0.63-0.75 in (15.9-19.0 mm)
Hub Size
1
Display Size
1 NPT
Dimensions
1.88 in x 1.88 in x 2.45 in
Width
1.88 in
Length
1.88 in
Height
2.45 in

Details

Style - Connector
Straight Male
Material
Nylon
Cable Opening Max.
3/4 in
Cable Opening Min.
5/8 in
Standards
UL 514B, CSA Certified
Item
Cord Connectors
Type
Straight Male
Color
Black
Brand
Hubbell Wiring Device-Kellems
Color Code
Yellow
Series
Standard Duty
Carton Quantity
15
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Number Of Conductors
Single
Application
Straight Male- Form 4
Conductor Range
0.63-0.75 in (15.9-19.0 mm)
Material - Mounting Hardware
Locknut or Tapped Opening
Item Type
Cord Connectors
Nema Rating
NEMA Type 4, 4X, 12 and 13
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Performance
Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .63-.75", 1", Nylon, Black
