  11. Kellems Wire Management, Cord Connectors, Underground Feeder Connectors, .2"x.6" min, .26"x.78" max, 3/4", Nylon
Shop All Cable Connectors
Hubbell Wiring Device-Kellems

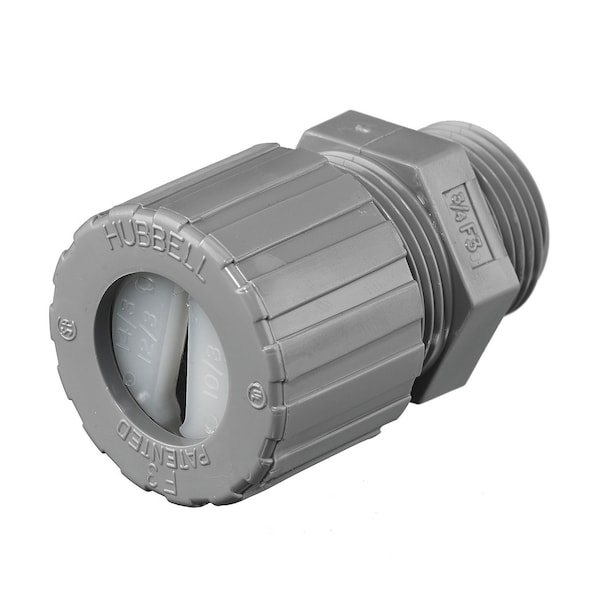

Kellems Wire Management, Cord Connectors, Underground Feeder Connectors, .2"x.6" min, .26"x.78" max, 3/4", Nylon

product price: $10.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style - Connector Underground Feeder
  • Color Gray
  • Cable Opening Max. 0.26 in x 0.78 in
  • Cable Opening Min. 0.2 in x 0.6 in
  • Knockout Size 1.09 to 1.14 in
See all product information

Product Information

Dimensions

Knockout Size 1.09 to 1.14 in
Display Size 3/4 NPT
Cord Dia. Range 0.2 x .6 in Min, 0.26 in x 0.78 in Max
Hub Size 3/4

Details

Style - Connector Underground Feeder
Color Gray
Cable Opening Max. 0.26 in x 0.78 in
Cable Opening Min. 0.2 in x 0.6 in
Item Underground Feeder Connectors
Standards UL 514B, CSA Certified
Type Underground Feeder
Material Nylon
Nema Rating IP66
Application Straight Male
Mounting Hardware Material Locknut or Tapped Opening
Standard UL Listed
Environmental Rating Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Series Standard Duty
Brand Hubbell Wiring Device-Kellems
Number Of Conductors Single
Temp. Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Carton Quantity 30
Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Industry Standard(s) UL Listed
Item Type Underground Feeder Connectors
OEM Brand Name Hubbell Wiring Device-Kellems
Material - Mounting Hardware Locknut or Tapped Opening
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Performance Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Conductor Range 0.2 x .6 in Min, 0.26 in x 0.78 in Max

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Underground Feeder Connectors, .20"-.60", 3/4", Nylon
