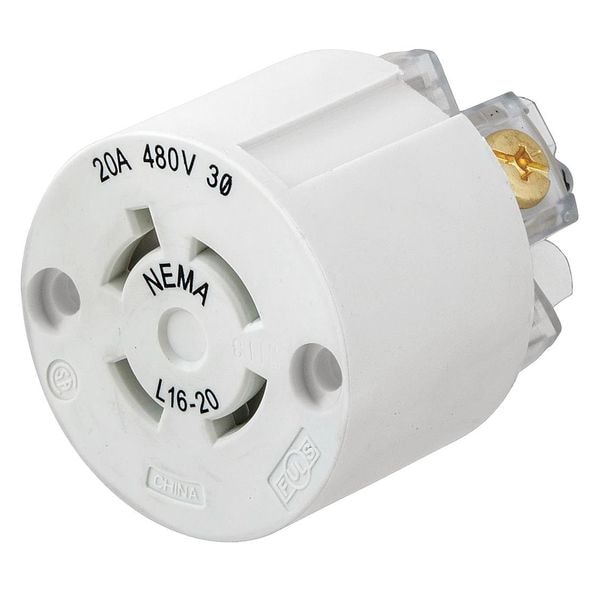

L16-20R, Three Phase, 3 Pole, White
Mfr # HBL27W76IN
Zoro # G0291475
product price:Â
$
63.79
/ea
Sold in multiples of 50 for $3,189.50
Key Features
NEMA Plug Configuration
L16-20R
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HBL27W76IN
- Zoro #
- G0291475
- UPC #
- 783585456386
- Country of Origin
- China
Dimensions
- Overall Width
- 4 in
- Overall Height
- 1.9 in
Details
- Item
- Watertight Locking Plug
- NEMA Plug Configuration
- L16-20R
- Current Rating
- 20 A
- Voltage Rating
- 480V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- Housing Color
- White
- Standards
- ANSI, NEMA WD-1 and WD-6
- Resistance Properties
- Heat Resistant
- Fits Brand
- Hubbell
- Blade Material
- Nickel-Plated Brass
- For Use With
- Connector, Receptacle
- NEMA Receptacle Configuration
- L16-20R
- Housing Material
- Nylon
- Contact Material
- Brass
- Flammability
- UL 94 V2
- Body Material
- White Nylon
- Performance
- Environmental - Flammability - UL94 V-2
- Amperage Rating
- 20 A
- Compatible Product Type
- Connector, Receptacle
- Color
- White
Description
Locking Device Insert, Current Rating 20 A, For Use With Connector, Receptacle, Housing Material Nylon, NEMA Receptacle Configuration L16-20R, Resistance Properties Heat Resistant, Voltage Rating 480V AC, Standards ANSI, NEMA WD-1 and WD-6, Blade Material Nickel-Plated Brass, Color White, Contact Material Brass, Overall Height 1.9 in, Overall Width 4 in
