Shop HUBBELL WIRING DEVICE-KELLEMS

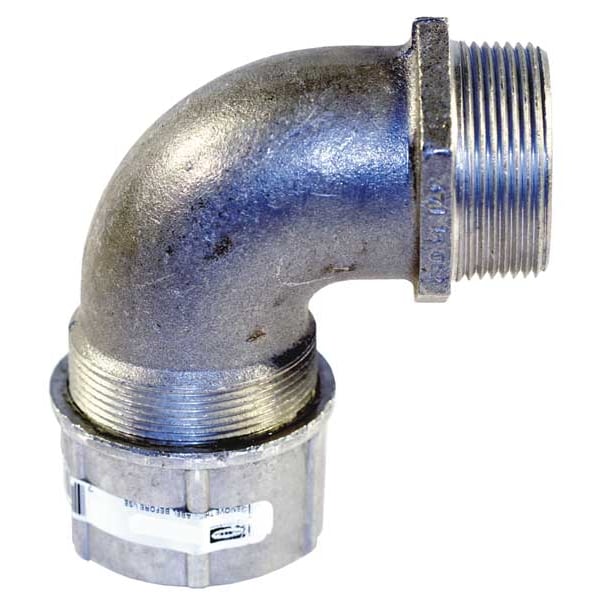

Liquid Tight Connector, 1-1/2 in., 90 deg

  • Mfr # NHC1059

  • Zoro # G6392942

product price:  $75.79
/ea

Key Features

Material
Aluminum
Box Connection
1 1/2 in MNPT
Material - External Strain Relief
No External Strain Relief
Length - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NHC1059
Zoro #
G6392942
UPC #
783585201597
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Conduit Size
1-1/2"
Cord Dia. Range
1.25 in to 1.38 in
Length
4-5/16"
Length - Box to End of Connector
3 3/16 in
Hub Size
1 1/2 in
Form Size
F5
Compatible Conduit Trade Size
1 1/4 in
Thread Size
1 1/4 in
Recommended Knockout Hole Size
1.97"- 2.02" (50.0-51.2)
Dimension B
4.30" (109.2) Ref.
Dimension C
.75" (19.2) Dia.
Dimension E A/F
2.15" (54.6)
Cord Diameter Range
1.25"- 1.38" (31.7- 34.9)
Dimension A
3.18" (80.8)
Dimension E A/C
2.47" (62.7)
Dimension D
1.50" (38.1) Throat.
Dimension G
2.31" (58.7) Dia.
Display Size
1 1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1 1/2 in MNPT
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Number of Cords
1
Connector Type
90 Degrees
Standards
CSA LR27378, UL E54218(M)
Item - Cord Connector
Liquid Tight Cord Connector
Material - Cord Connector
Aluminum
Gland Color Code
No Code
Insulated
No
Body Color - Cord Connector
Silver
Color
Silver
Style - Connector
90 Degrees
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
For Use With
Kellems Wire Management
Body Color
Silver
IP Rating
IP66
Environmental Rating
Hazardous Locations
Liquid Tight
Yes
Connection Orientation
90 Degrees
Compatible Conduit Type
Liquid Tight Cord Connector
Thread Type
NPT
For Maximum Cable OD
1.38 in
Body Material
Aluminum
Grommet Color Code
No Code
Minimum Operating Temperature
-30 Degrees F
Collar Material
Aluminum
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
For Minimum Cable OD
1.25 in
Maximum Operating Temperature
225 Degrees F
Thread Gender
Male
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Material/Style
Cast Aluminum
Product Type
Cord Connectors
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Cord Connector Body Style
90 Degree Male
Industry Standard(s)
UL Listed
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
1.25-1.38 in (31.7- 34.9 mm)
Type
90° Male
Application
90 Degree Male- Form 5
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Material - Mounting Hardware
Locknut or Tapped Opening
Item Type
Cord Connectors
Series
Standard Duty
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Number Of Conductors
Single

Description

Liquid Tight Cord Connector, Cord Dia. Range 1.25 in to 1.38 in, Box Connection 1 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 3 3/16 in, Insulated No, Standards CSA LR27378, UL E54218(M)
