  11. Liquid Tight Connector, 1 in., Purple

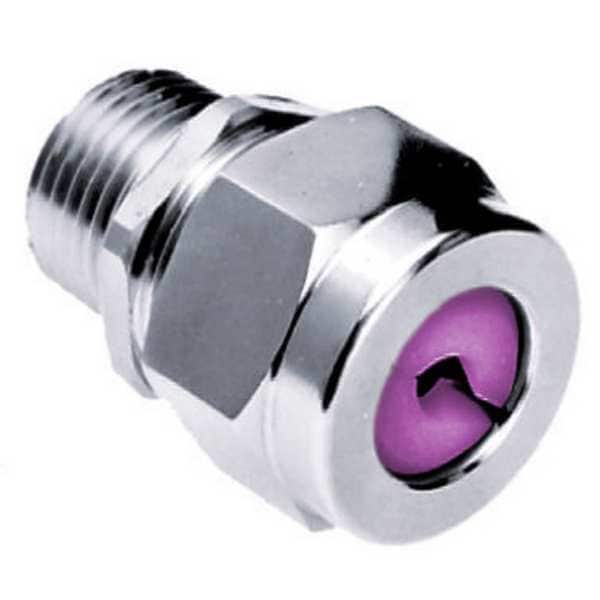

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1 in., Purple SHC1099ZP - main

Liquid Tight Connector, 1 in., Purple

  • Mfr # SHC1099ZP

  • Zoro # G0799084

product price: $20.89
/ea

Key Features

Material
Steel
Box Connection
1 in MNPT
Gland Color Code
Purple
Number of Cords
1
Insulated
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1099ZP
Zoro #
G0799084
UPC #
783585210995
Country of Origin
United States

Dimensions

Length
2-6/64"
Length - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
1 3/8 in
Conduit Size
1"
Cord Dia. Range
0.75 in to 0.88 in
Hub Size
1 in MNPT
Form Size
F3
Compatible Conduit Trade Size
1 in
Overall Length
2 1/8 in
Thread Size
1 in
Dimension A A/C
1.55" (39.4)
Dimension C
.70" (17.8)
Cord Diameter Range
.75"- .88" (19.0- 22.2)
Dimension E A/F
1.38" (35.1)
Recommended Knockout Hole Size
1.36"- 1.41" (34.5-35.7)
Dimension B
1.40" (35.6) Ref.
Dimension A A/F
1.38" (35.1)
Dimension E A/C
1.54" (39.1)
Dimension D
.89" (22.6) Throat Dia.
Display Size
1" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
1 in MNPT
Gland Color Code
Purple
Number of Cords
1
Insulated
No
Standards
CSA LR27378, UL E54218(M)
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Style - Connector
Straight
Connector Type
Straight
Color
Purple
Body Color - Cord Connector
Silver
Strain Relief Type
No External Strain Relief
Material - Cord Connector
Zinc Plated Steel
Material - External Strain Relief
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
For Use With
Kellems Wire Management
Thread Type
NPT Thread
Minimum Operating Temperature
-30 Degrees F
Thread Gender
Male
Body Material
Steel
Environmental Rating
Hazardous Locations
Connection Orientation
Straight
Liquid Tight
Yes
Resistance Properties
Corrosion Resistant
Collar Material
Steel
Compatible Conduit Type
Liquid Tight Cord Connector
IP Rating
IP66
Grommet Color Code
Purple
Bushing Material
Neoprene
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
For Maximum Cable OD
0.88 in
For Minimum Cable OD
0.75 in
Maximum Operating Temperature
225 Degrees F
Body Color
Silver
Product Type
Cord Connectors
Cord Connector Body Style
Straight Male
Material/Style
Zinc Plated Steel
Color Code
Orchid
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors
Series
Standard Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
0.75- 0.88 in (19.0- 22.2 mm)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number Of Conductors
Single
Industry Standard(s)
UL Listed
Type
Straight Male
Material - Mounting Hardware
Locknut or Tapped Opening
Application
Straight Male- Form 3
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.75 in to 0.88 in, Box Connection 1 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Purple, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 3/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
