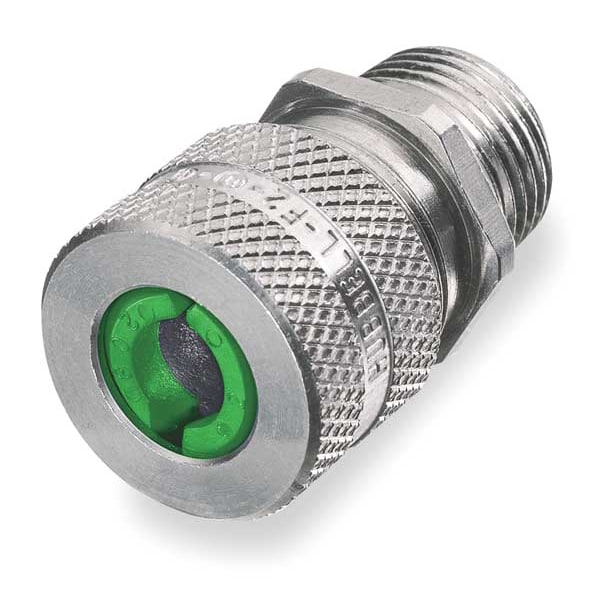

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2 in., Green SHC1019 - main

Liquid Tight Connector, 1/2 in., Green

  • Mfr # SHC1019

  • Zoro # G0348731

product price: $9.35
/ea

Key Features

Material
Aluminum
Box Connection
1/2 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Material - External Strain Relief
No External Strain Relief
Connector Type
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1019
Zoro #
G0348731
UPC #
783585200194
Country of Origin
United States

Dimensions

Length - Box to End of Connector
7/8 in
Length
1-21/32"
Length - External Strain Relief
No External Strain Relief
Conduit Size
1/2"
Cord Dia. Range
0.06 in to 0.13 in
Hub Size
1/2 in MNPT
Thread Size
1/2 in
Form Size
F2
Overall Length
1 5/8 in
Compatible Conduit Trade Size
1/2 in
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension A
1.13" (28.7) Dia.
Dimension B
1.10" (27.9) Ref.
Dimension D
.64" (16.3) Throat Dia.
Dimension C
.55" (14.0)
Cord Diameter Range
.06"- .13" (1.6- 3.2)
Dimension E A/F
1.00" (25.4)
Dimension E A/C
1.11" (28.2)
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1/2 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Material - External Strain Relief
No External Strain Relief
Connector Type
Straight
Style - Connector
Straight
Material - Cord Connector
Aluminum
Strain Relief Type
No External Strain Relief
Gland Color Code
Green
Insulated
No
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Color
Green
Number of Cords
1
Body Color - Cord Connector
Silver
Standards
CSA LR27378, UL E54218(M)
For Use With
Kellems Wire Management
For Maximum Cable OD
0.13 in
Maximum Operating Temperature
225 Degrees F
Thread Gender
Male
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Type
NPT Thread
Connection Orientation
Straight
Minimum Operating Temperature
-30 Degrees F
Bushing Material
Neoprene
Body Material
Aluminum
Collar Material
Aluminum
Grommet Color Code
Green
Compatible Conduit Type
Liquid Tight Cord Connector
Environmental Rating
Hazardous Locations
Body Color
Silver
IP Rating
IP66
For Minimum Cable OD
0.06 in
Liquid Tight
Yes
Effective Operating Temperature
-30°F to +225°F (34°C to +107°C)
Product Type
Cord Connectors
Cord Connector Body Style
Straight Male
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Color Code
Green
Material/Style
Aluminum
Application
Straight Male- Form 2
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Locknut or Tapped Opening
Type
Straight Male
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Item Type
Cord Connectors
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Number Of Conductors
Single
Series
Standard Duty
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Conductor Range
0.06-0.13 in (1.6- 3.2 mm)

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.06 in to 0.13 in, Box Connection 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Green, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 7/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
