Shop HUBBELL WIRING DEVICE-KELLEMS

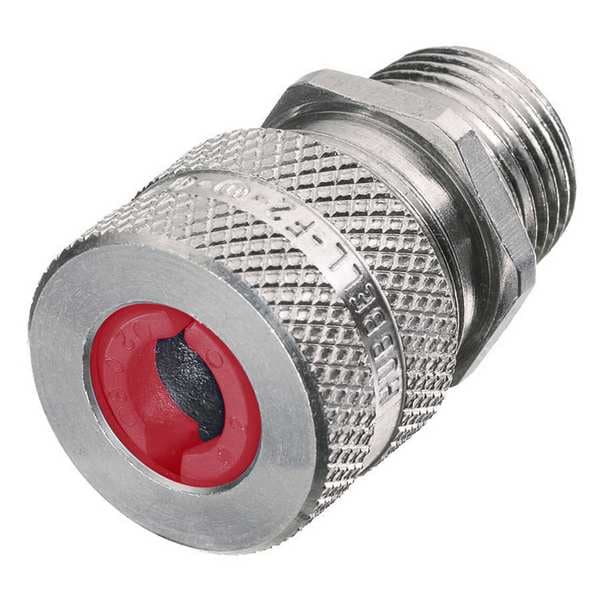

Liquid Tight Connector, 1/2 in., Red

  • Mfr # SHC1015

  • Zoro # G2429016

product price:
$
10.15
/ea

Key Features

Material
Aluminum
Box Connection
1/2 in MNPT
Cord Dia. Range
0.19 in to 0.25 in
Conduit Size
1/2"
Item - Cord Connector
Liquid Tight Cord Connector
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SHC1015
Zoro #
G2429016
UPC #
783585200156
Country of Origin
China

Dimensions

Cord Dia. Range
0.19 in to 0.25 in
Conduit Size
1/2"
Length
1-29/64"
Length - Box to End of Connector
7/8 in
Length - External Strain Relief
No External Strain Relief
Hub Size
1/2 in
Overall Length
1 7/16 in
Form Size
F1
Thread Size
1/2 in
Compatible Conduit Trade Size
1/2 in
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension B
.90" (22.9) Ref.
Dimension D
.44" (11.2) Throat Dia.
Dimension E A/F
.88" (22.4)
Dimension E A/C
1.00" (25.4)
Cord Diameter Range
.19"- .25" (4.7- 6.3)
Dimension C
.46" (11.7)
Dimension A
.88" (22.4) Dia.
Display Size
1/2" NPT
Wire Rope Length
1 7/16 in

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1/2 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Material - Cord Connector
Aluminum
Gland Color Code
Red
Body Color - Cord Connector
Silver
Color
Red
Connector Type
Straight
Number of Cords
1
Material - External Strain Relief
No External Strain Relief
Insulated
No
Standards
CSA LR27378, UL E54218(M)
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Strain Relief Type
No External Strain Relief
Style - Connector
Straight
For Use With
Kellems Wire Management
Grommet Color Code
Red
Maximum Operating Temperature
225 Degrees F
Liquid Tight
Yes
For Maximum Cable OD
0.25 in
Body Material
Aluminum
Environmental Rating
Hazardous Locations
Thread Gender
Male
Body Color
Silver
Minimum Operating Temperature
-30 Degrees F
Thread Type
NPT
Compatible Conduit Type
Liquid Tight Cord Connector
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Collar Material
Aluminum
For Minimum Cable OD
0.19 in
Connection Orientation
Straight
Bushing Material
Neoprene
IP Rating
IP66
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Material/Style
Aluminum
Cord Connector Body Style
Straight Male
Product Type
Cord Connectors
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Effective Operating Temperature
-30°F to +225°F (34°C to +107°C)
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Color Code
Red
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors
Type
Straight Male
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Locknut or Tapped Opening
Series
Standard Duty
Application
Straight Male- Form 1
Conductor Range
0.19-0.25 in (4.7- 6.3 mm)
Industry Standard(s)
UL Listed
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 7/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
