  11. Liquid Tight Connector, 1/2 in., White

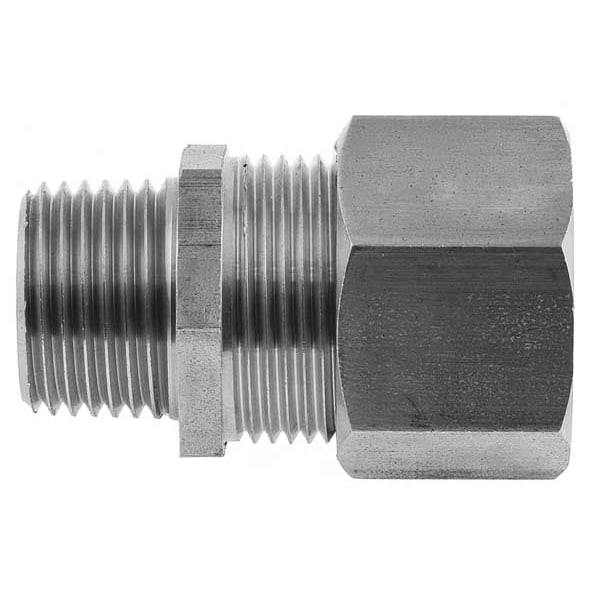

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2 in., White SHC1022SS - main

Liquid Tight Connector, 1/2 in., White

  • Mfr # SHC1022SS

  • Zoro # G1842285

product price: $102.60
/ea
Free Shipping & Returns

Key Features

Material
Stainless Steel
Box Connection
1/2 in MNPT
Body Color - Cord Connector
Silver
Insulated
No
Number of Cords
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1022SS
Zoro #
G1842285
UPC #
783585207223
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
1 1/8 in
Conduit Size
1/2"
Cord Dia. Range
0.25 in to 0.38 in
Length
1-41/64"
Hub Size
1/2 in MNPT
Overall Length
1 5/8 in
Thread Size
1/2 in
Form Size
F2
Compatible Conduit Trade Size
1/2 in
Dimension A A/C
1.30" (33.0)
Dimension C
.54" (13.7)
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension D
.63" (16.0) Throat Dia.
Dimension E A/C
1.16" (29.5)
Dimension A A/F
1.13" (28.7)
Dimension B
1.10" (27.9)
Dimension E A/F
1.00" (25.4)
Cord Diameter Range
.25"- .38" (6.3- 9.7)
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Stainless Steel
Box Connection
1/2 in MNPT
Body Color - Cord Connector
Silver
Insulated
No
Number of Cords
1
Gland Color Code
White
Material - Cord Connector
Stainless Steel
Strain Relief Type
No External Strain Relief
Material - External Strain Relief
No External Strain Relief
Standards
CSA LR27378, UL E54218(M)
Item - Cord Connector
Liquid Tight Cord Connector
Color
White
Connector Type
Straight
Style - Connector
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
For Use With
Kellems Wire Management
Application
Straight Male- Form 2
Minimum Operating Temperature
-30 Degrees F
Resistance Properties
Corrosion Resistant
Collar Material
Stainless Steel
Maximum Operating Temperature
225 Degrees F
Body Material
Stainless Steel
For Minimum Cable OD
0.25 in
Thread Gender
Male
For Maximum Cable OD
0.38 in
Bushing Material
Neoprene
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Type
NPT Thread
Connection Orientation
Straight
IP Rating
IP66
Environmental Rating
Hazardous Locations
Liquid Tight
Yes
Body Color
Silver
Grommet Color Code
White
Compatible Conduit Type
Liquid Tight Cord Connector
Product Type
Cord Connectors
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Color Code
White
Cord Connector Body Style
Straight Male
Material/Style
Stainless Steel
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors
Number Of Conductors
Single
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Series
Standard Duty
Industry Standard(s)
UL Listed
Type
Straight Male
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Conductor Range
0.25- 0.38 in (6.3- 9.7 mm)
Material - Mounting Hardware
Locknut or Tapped Opening
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.25 in to 0.38 in, Box Connection 1/2 in MNPT, Material - Cord Connector Stainless Steel, External Strain Relief Material No External Strain Relief, Gland Color Code White, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
