  11. Liquid Tight Connector, 3/4in., Orchid

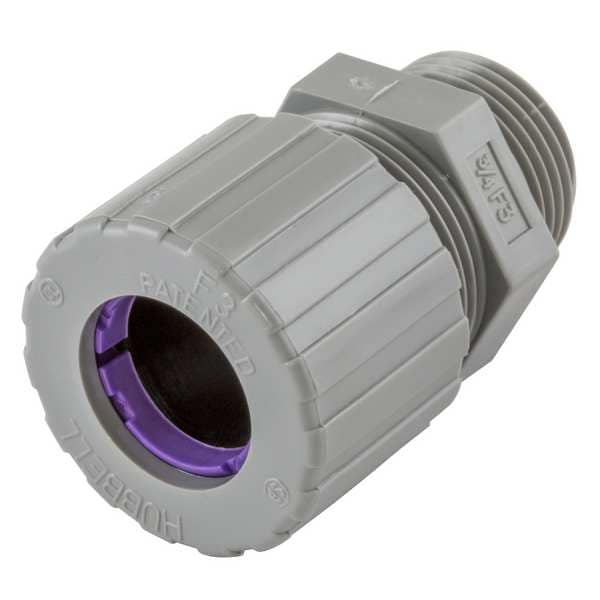

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/4in., Orchid SHC1038CR - main

Liquid Tight Connector, 3/4in., Orchid

  • Mfr # SHC1038CR

  • Zoro # G2138911

product price: $10.69
/ea

Key Features

Material
Nylon
Box Connection
3/4 in MNPT
Length - Box to End of Connector
1 5/8 in
Standards
CSA LR27378, UL E54218(M)
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1038CR
Zoro #
G2138911
UPC #
783585208107
Country of Origin
United States

Dimensions

Length - Box to End of Connector
1 5/8 in
Cord Dia. Range
0.75 in to 0.88 in
Conduit Size
3/4"
Length - External Strain Relief
No External Strain Relief
Length
2-5/32"
Hub Size
3/4 in MNPT
Thread Size
3/4 in
Overall Length
2 1/8 in
Form Size
F3
Compatible Conduit Trade Size
3/4 in
Cord Diameter Range
.75"- .88" (19.0- 22.2)
Dimension E A/C
1.44" (36.6)
Dimension A
1.56" (39.6) Dia.
Recommended Knockout Hole Size
1.09"- 1.14" (27.8-29.0)
Dimension B
1.60" (40.6) Ref.
Dimension C
.55" (14.0)
Dimension D
.77" (19.6) Throat Dia.
Dimension E A/F
1.31" (33.3)

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
3/4 in MNPT
Standards
CSA LR27378, UL E54218(M)
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Gland Color Code
Orchid
Connector Type
Straight
Style - Connector
Straight
Color
Orchid
Material - External Strain Relief
No External Strain Relief
Number of Cords
1
Strain Relief Type
No External Strain Relief
Insulated
Yes
Body Color - Cord Connector
Gray
Material - Cord Connector
Nylon
Item - Cord Connector
Liquid Tight Cord Connector
For Use With
Kellems Wire Management
Bushing Material
Neoprene
Thread Gender
Male
Compatible Conduit Type
Liquid Tight Cord Connector
For Minimum Cable OD
0.75 in
Resistance Properties
Corrosion Resistant
Minimum Operating Temperature
-30 Degrees F
For Maximum Cable OD
0.88 in
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Maximum Operating Temperature
225 Degrees F
Connection Orientation
Straight
Body Material
Nylon
Environmental Rating
Not Flammable, Hazardous Locations
Thread Type
NPT Thread
IP Rating
IP66
Grommet Color Code
Orchid
Collar Material
Nylon
Liquid Tight
Yes
Body Color
Gray
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Cord Connector Body Style
Straight Male
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Color Code
Orchid
Material/Style
Nylon Standard Style
Product Type
Cord Connectors
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.75 in to 0.88 in, Box Connection 3/4 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Orchid, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 5/8 in, Insulated Yes, Standards CSA LR27378, UL E54218(M)
