  11. Liquid Tight Connector, 3/8in., 90 deg, Blk

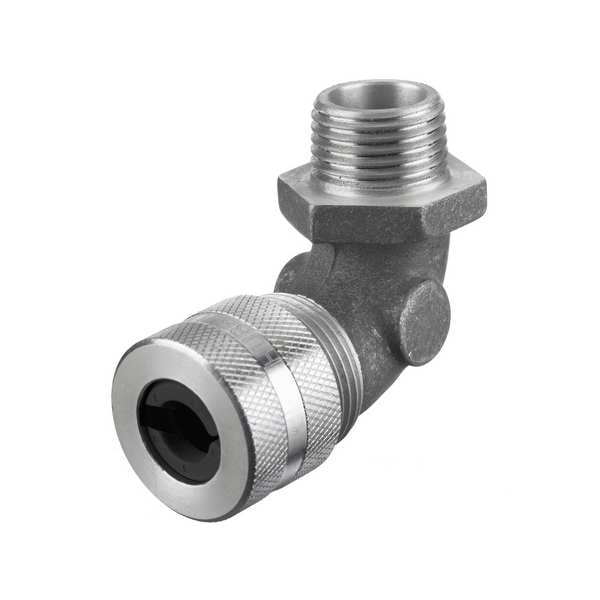

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/8in., 90 deg, Blk NHC1010 - main

Liquid Tight Connector, 3/8in., 90 deg, Blk

  • Mfr # NHC1010

  • Zoro # G2695025

product price: $17.15
/ea

Key Features

Material
Aluminum
Box Connection
3/8 in MNPT
Number of Cords
1
Length
2"
Gland Color Code
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1010
Zoro #
G2695025
UPC #
783585201108
Country of Origin
United States

Dimensions

Length
2"
Cord Dia. Range
0.25 in to 0.31 in
Length - Box to End of Connector
1 1/4 in
Length - External Strain Relief
No External Strain Relief
Conduit Size
3/8"
Hub Size
3/8 in MNPT
Compatible Conduit Trade Size
3/8 in
Form Size
F1
Thread Size
3/8 in
Cord Diameter Range
.25"- .31" (6.3- 7.9)
Dimension E A/C
1.15" (29.2)
Recommended Knockout Hole Size
.67"- .70" (17.0-17.8)
Dimension G
.88" (22.2) Dia.
Dimension E A/F
1.10" (27.9)
Dimension C
.46" (11.7) Dia.
Dimension A
1.27" (32.3)
Dimension B
2.00" (50.8) Ref.
Dimension D
.44" (11.2) Throat.

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
3/8 in MNPT
Number of Cords
1
Gland Color Code
Black
Standards
CSA LR27378, UL E54218(M)
Strain Relief Type
No External Strain Relief
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Material - Cord Connector
Aluminum
Connector Type
90 Degrees
Insulated
No
Item - Cord Connector
Liquid Tight Cord Connector
Body Color - Cord Connector
Silver
Color
Black
Material - External Strain Relief
No External Strain Relief
Style - Connector
90 Degrees
For Use With
Cord Connectors, Kellems Wire Management
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Body Material
Aluminum
Connection Orientation
90 Degrees
Grommet Color Code
Black
IP Rating
IP66
Collar Material
Aluminum
For Minimum Cable OD
0.25 in
Thread Type
NPT Thread
Liquid Tight
Yes
Thread Gender
Male
Maximum Operating Temperature
225 Degrees F
Body Color
Silver
Compatible Conduit Type
Liquid Tight Cord Connector
Minimum Operating Temperature
-30 Degrees F
Environmental Rating
Hazardous Locations
For Maximum Cable OD
0.31 in
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Material/Style
Aluminum
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Color Code
Black
Cord Connector Body Style
90 Degree Male
Product Type
Cord Connectors

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.25 in to 0.31 in, Box Connection 3/8 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Black, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/4 in, Insulated No, Standards CSA LR27378, UL E54218(M)
