  11. Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black

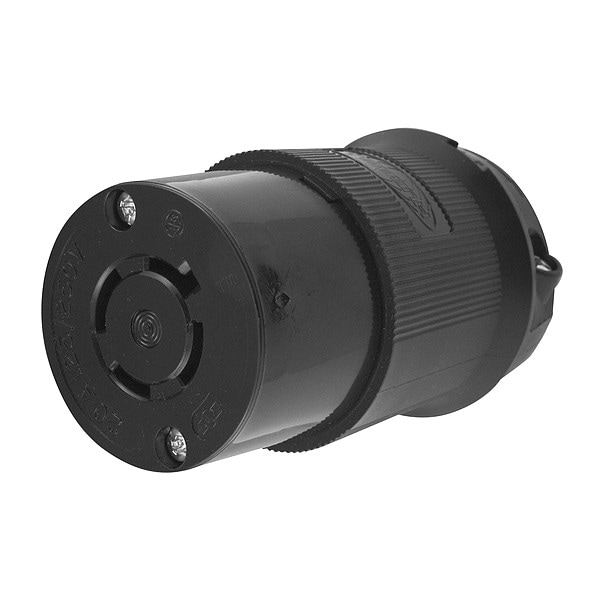

Hubbell Wiring Device-Kellems Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black HBL2413BK - main

Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL2413BK

  • Zoro # G1530417

product price: $55.79
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2413BK
Zoro #
G1530417
UPC #
783585172316
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Minimum Wire Size
16 AWG
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Outside Diameter
2.33 in
Maximum Wire Size
8 AWG
Overall Length
3.86 in
Height
2.33 in
Dimensions
3.86 in x 2.33 in x 2.33 in
Width
2.33 in
Length
3.86 in
Wire Size
#16 AWG to #8 AWG

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
C
IP Rating
IP20
Material
Nylon
Grade
Industrial
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Maximum Operating Temperature
75 Degrees C
For Location
Indoor
Midget Locking
No
Horsepower Rating
2 hp
UL 94 Flammability Rating
HB
Power Indicating Light
No
For Environment
Dry
Housing Material
Nylon
Weight
0.35
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Material - Mounting Hardware
Cord Mounted
Cord Range
0.350"-1.150" (9-29)
Application
Heavy Duty Industrial
Power Indicator
No
Antimicrobial
No

Description

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
