  11. Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

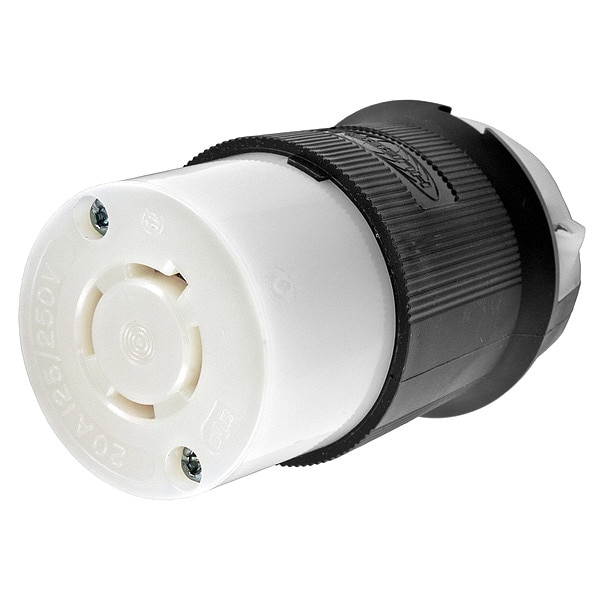

Hubbell Wiring Device-Kellems Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL2413 - main

Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2413

  • Zoro # G2597524

product price: $52.72
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2413
Zoro #
G2597524
UPC #
783585038155
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
For Maximum Cable Diameter
1.15 in
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.35 in
Outside Diameter
0.233 in
Minimum Wire Size
16 AWG
Overall Length
2.33 in
Width
2.33 in
Length
2.33 in
Wire Size
#16 AWG to #8 AWG
Dimensions
2.33 in x 2.33 in x 3.86 in
Height
3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Material
Nylon
IP Rating
IP20
Boot Code
C
Grade
Industrial
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498
Market
Industrial
UL 94 Flammability Rating
HB
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Horsepower Rating
2 hp
Power Indicating Light
No
For Environment
Dry
Contact Material
Brass
Maximum Operating Temperature
75 Degrees C
Midget Locking
No
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.35
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Amperage Rating
20 A
Cord Range
0.350"-1.150" (9-29)
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 20A Twist-Lock Connector (L14-20R) is a locking connector rated for use in industrial and commercial electrical applications. It features a three-pole, four-wire configuration rated for 125/250V AC and supports up to 20 amps of current. The connector uses screw terminals for secure wire connections and is constructed with an impact-resistant nylon housing suitable for indoor dry locations.


Key Features of the HUBBELL 20A Twist-Lock Connector:

  • Cord Grip Design: Intended to reduce strain on wire terminations.

  • Wire Entry: Funnel-shaped entry accommodates wires sized #16 AWG to #8 AWG stranded copper only.

  • Dust Shield: Includes a dust shield intended to limit ingress of contaminants into the wiring chamber.

  • Cable Range: Accepts cords with diameters between 0.350 in and 1.150 in.

  • Operating Temperature: Rated for operation within -40°C to 75°C (non-impact conditions).

  • Flame Resistance: Complies with UL94 HB or better and CSA standards; maximum temperature rise of 30°C at full load following overload cycles.

  • NEMA Configuration: L14-20R, straight connection orientation

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498 requirements.
